Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door window. Refer to Window Replacement - Front Door .

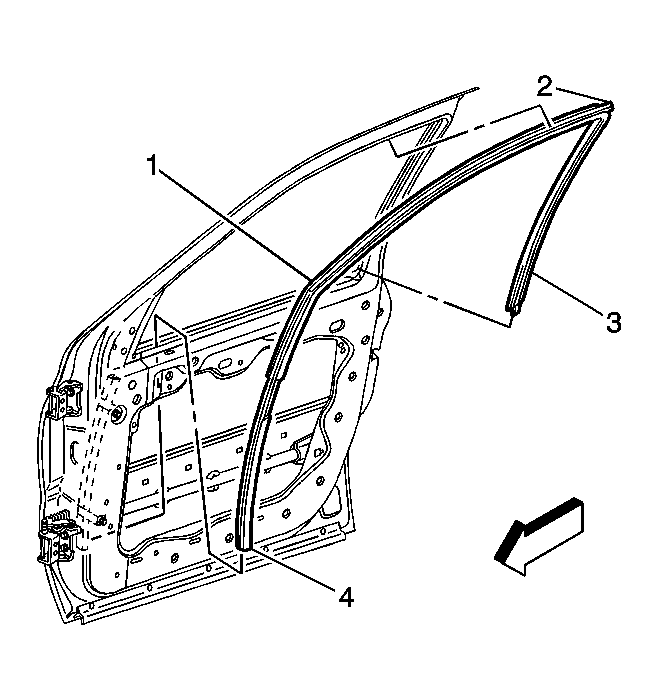

    4. Fig 1: Identifying Front Door Weatherstrip
    GM1502968Courtesy of GENERAL MOTORS CORP.
  4. Remove the weatherstrip (2) from the door frame.
