Fascia, Bracket, Bar, Absorber Replacement - Rear Bumper
WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
Fascia, Bracket, Bar, Absorber Replacement - Rear Bumper

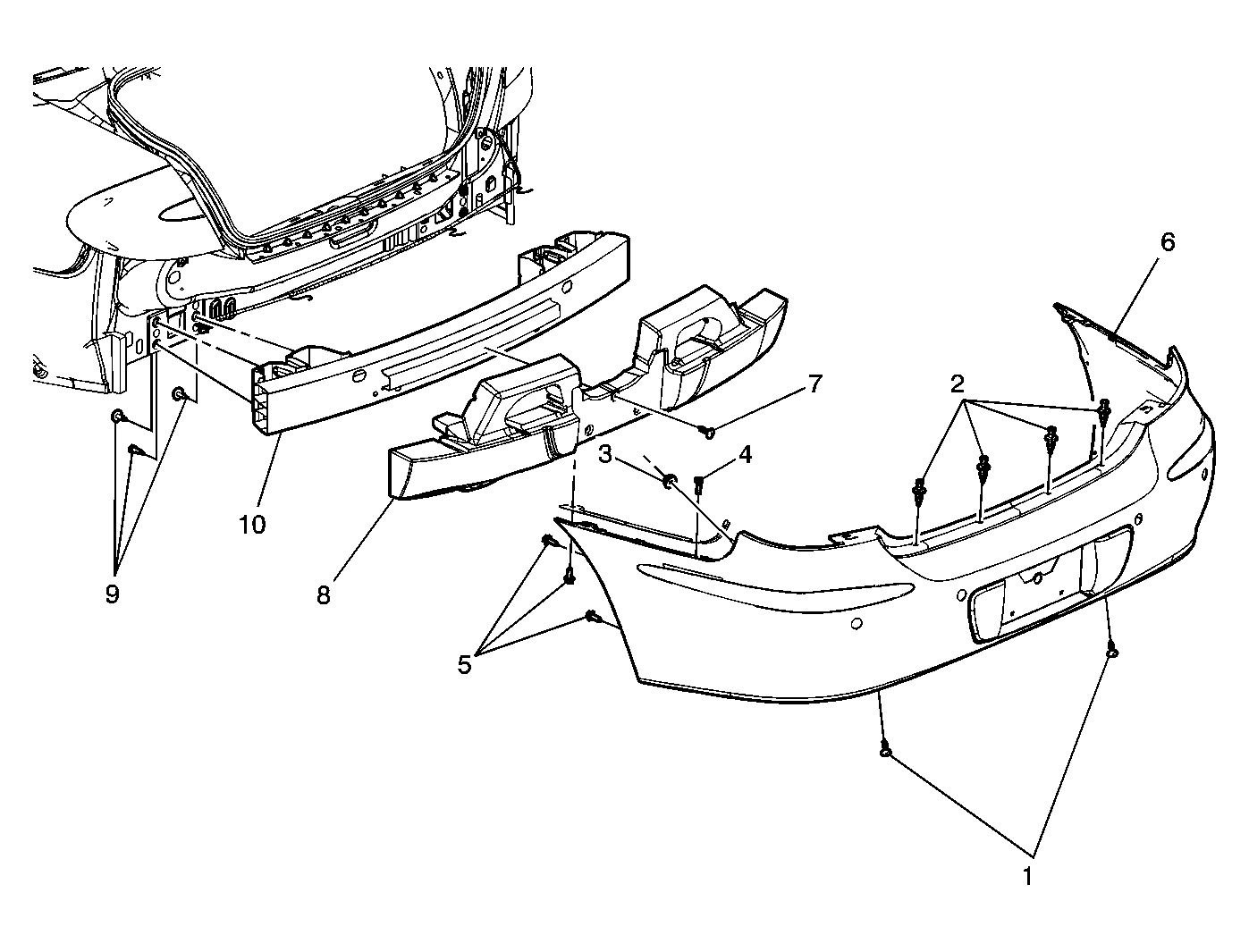

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in General Information. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedures: Remove the license lamp. Refer to Tail Lamp, Turn Signal Lamp, High Mount Stop Lamp, License Lamp, Backup Lamp Replacement - Rear
in Lighting Systems. |
|
| Rear Fascia Replacement | |
| 1 | Retainer, Rear Fascia (Qty: 2) |
| 2 | Retainer, Rear Fascia (Qty: 4) |
| 3 | Nut, Rear Fascia (Qty: 2) Tighten: 6 N.m (53 lb in) |
| 4 | Bolt, Rear Fascia (Qty: 2) Tighten: 10 N.m (88 lb in) |
| 5 | Bolt, Rear Fascia (Qty: 6) Tighten: 10 N.m (88 lb in) |
| 6 | Fascia, Rear Fascia |
| Rear Energy Absorber Replacement | |
| 1 | Retainer, Rear Fascia (Qty: 2) |
| 2 | Retainer, Rear Fascia (Qty: 4) |
| 3 | Nut, Rear Fascia (Qty: 2) Tighten: 6 N.m (53 lb in) |
| 4 | Bolt, Rear Fascia (Qty: 2) Tighten: 10 N.m (88 lb in) |
| 5 | Bolt, Rear Fascia (Qty: 6) Tighten: 10 N.m (88 lb in) |
| 6 | Fascia, Rear Fascia |
| 7 | Retainer, Energy Absorber (Qty: 1) |
| 8 | Absorber, Rear Energy Absorber |
| Rear Impact Bar Replacement | |
| 1 | Retainer, Rear Fascia (Qty: 2) |
| 2 | Retainer, Rear Fascia (Qty: 4) |
| 3 | Nut, Rear Fascia (Qty: 2) Tighten: 6 N.m (53 lb in) |
| 4 | Bolt, Rear Fascia (Qty: 2) Tighten: 10 N.m (88 lb in) |
| 5 | Bolt, Rear Fascia (Qty: 6) Tighten: 10 N.m (88 lb in) |
| 6 | Fascia, Rear Fascia |
| 7 | Retainer, Energy Absorber (Qty: 1) |
| 8 | Absorber, Rear Energy Absorber |
| 9 | Bolts, Rear Impact Bar (Qty: 6) Tighten: 25 N.m (18 lb ft) |
| 10 | Bar, Rear Impact Bar |
