Tail Lamp, Turn Signal Lamp, High Mount Stop Lamp, License Lamp, Backup Lamp Replacement - Rear
WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

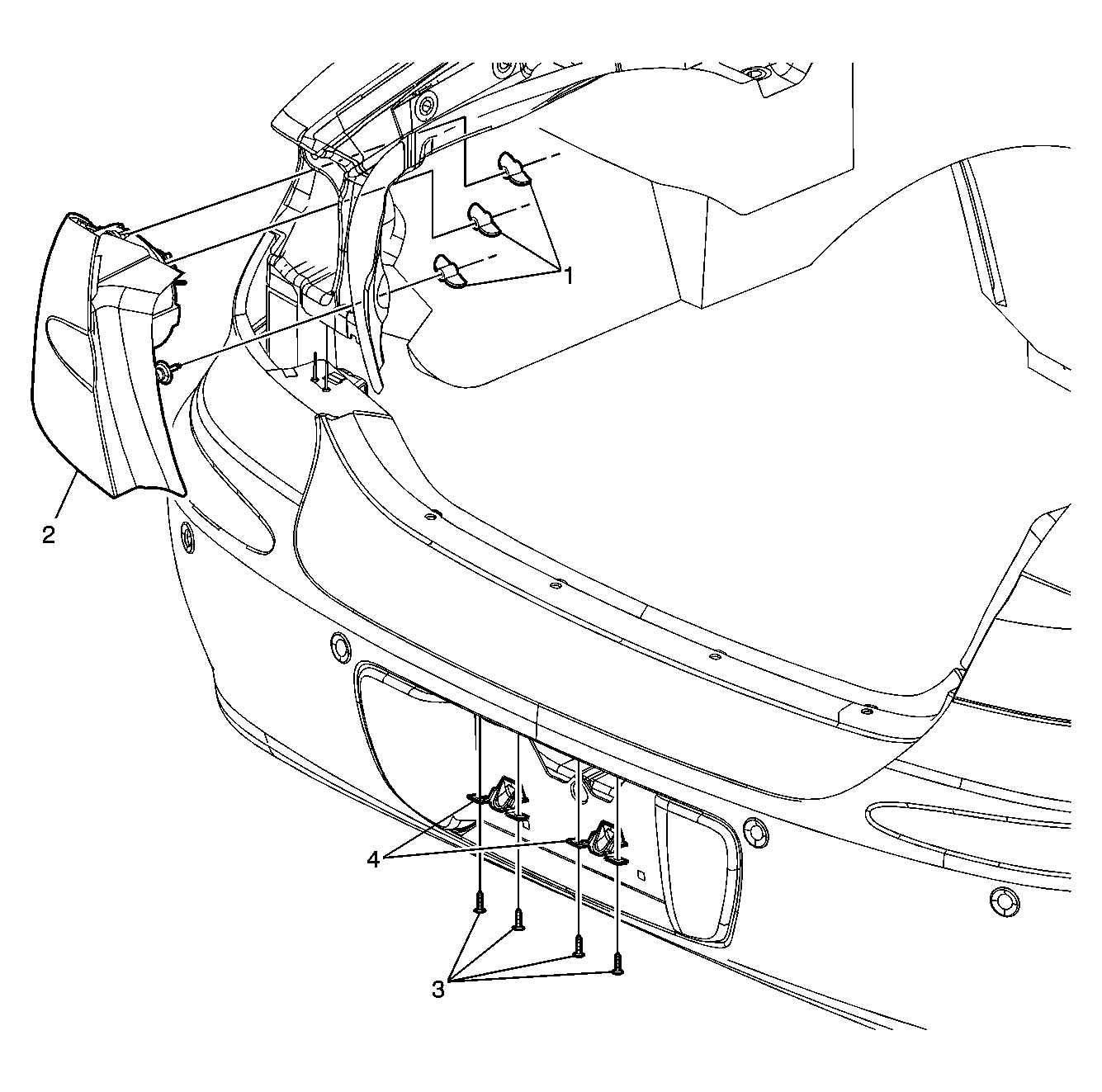

Fig 1: Removing/Installing Tail Lamp, Turn Signal Lamp, High Mount Stop Lamp, License Lamp & Backup Lamp
Tail Lamp, Turn Signal Lamp, High Mount Stop Lamp, License Lamp, Backup Lamp Replacement - Rear
| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| Turn Signal/Stop Lamp Assembly Replacement - Rear | |
| 1 | Nut, Turn Signal/Tail Lamp (Qty: 3) Tip: Pull back rear compartment carpet to gain access to lamp. Tighten: 2 N.m (18 lb in) |
| 2 | Lamp, Turn Signal/Tail Lamp Tip: Twist the bulb socket and pull inward to replace the bulb. |
| License Lamp Replacement | |
| 3 | Screws, License Lamp (Qty: 2) Tighten: 2 N.m (18 lb in) |
| 4 | Lamp, License Lamp Tip: Twist the bulb socket and pull inward to replace the bulb. |
