Fascia, Absorber, Reinforcement Replacement - Front Bumper

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

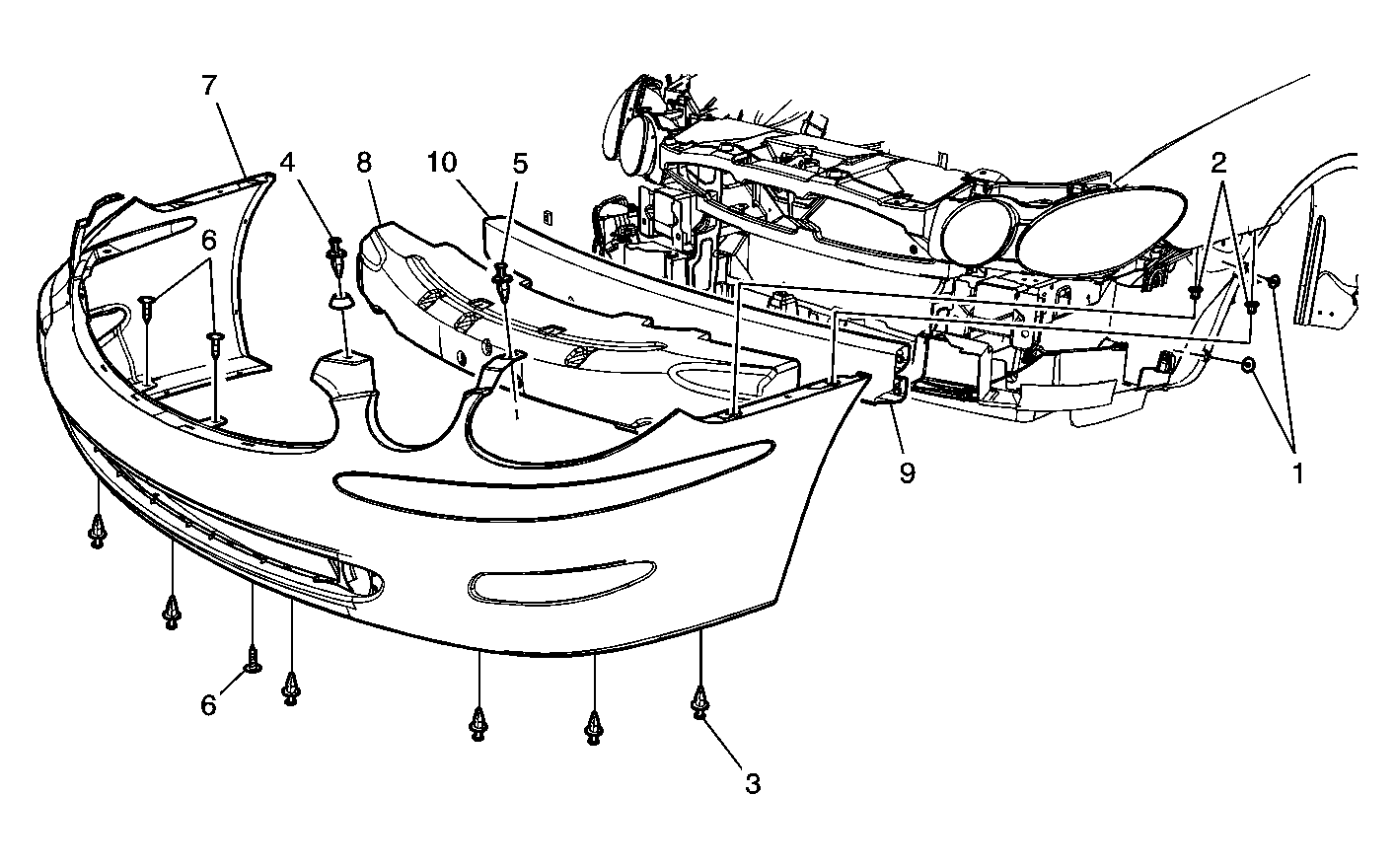

Fig 1: Identifying Front Bumper Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in General Information. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Front Fascia Replacement Preliminary Procedures Remove the upper and lower fascia grilles. Refer to Fascia Grille Replacement - Front Bumper - Lower . Remove fog lamp. Refer to Headlamp, Fog Lamp, Turn Signal Lamp, Side Marker Lamp Replacement - Front . Remove turn signal lamp. Refer to Headlamp, Fog Lamp, Turn Signal Lamp, Side Marker Lamp Replacement - Front .
1	Screw, Front Fascia (Qty: 4) Tighten: 2 N.m (18 lb in)
2	Nut, Front Fascia (Qty: 4) Tighten: 10 N.m (88 lb in)
3	Retainer, Front Fascia (Qty: 6)
4	Retainer, Front Fascia (Qty: 2)
5	Retainer, Front Fascia (Qty: 2)
6	Retainer, Absorber (Qty: 3)
7	Fascia, Front Bumper Fascia
Front Bumper Absorber Replacement Preliminary Procedures Remove fog lamp. Refer to Headlamp, Fog Lamp, Turn Signal Lamp, Side Marker Lamp Replacement - Front . Remove turn signal lamp. Refer to Headlamp, Fog Lamp, Turn Signal Lamp, Side Marker Lamp Replacement - Front .
1	Screw, Front Fascia (Qty: 4) Tighten: 2 N.m (18 lb in)
2	Nut, Front Fascia (Qty: 4) Tighten: 10 N.m (88 lb in)
3	Retainer, Front Fascia (Qty: 6)
4	Retainer, Front Fascia (Qty: 2)
5	Retainer, Front Fascia (Qty: 2)
6	Retainer, Absorber (Qty: 3)
7	Fascia, Front Bumper Fascia
8	Absorber, Front Bumper
Front Bumper Impact Bar Replacement Preliminary Procedures Remove fog lamp. Refer to Headlamp, Fog Lamp, Turn Signal Lamp, Side Marker Lamp Replacement - Front . Remove turn signal lamp. Refer to Headlamp, Fog Lamp, Turn Signal Lamp, Side Marker Lamp Replacement - Front .
1	Screw, Front Fascia (Qty: 4) Tighten: 2 N.m (18 lb in)
2	Nut, Front Fascia (Qty: 4) Tighten: 10 N.m (88 lb in)
3	Retainer, Front Fascia (Qty: 6)
4	Retainer, Front Fascia (Qty: 2)
5	Retainer, Front Fascia (Qty: 2)
6	Retainer, Absorber (Qty: 3)
7	Fascia, Front Bumper Fascia
8	Absorber, Front Bumper
9	Bolt, Front Bumper Impact Bar (Qty: 4) Tighten: 25 N.m (18 lb ft)
10	Bar, Front Bumper
