Headlamp, Fog Lamp, Turn Signal Lamp, Side Marker Lamp Replacement - Front

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

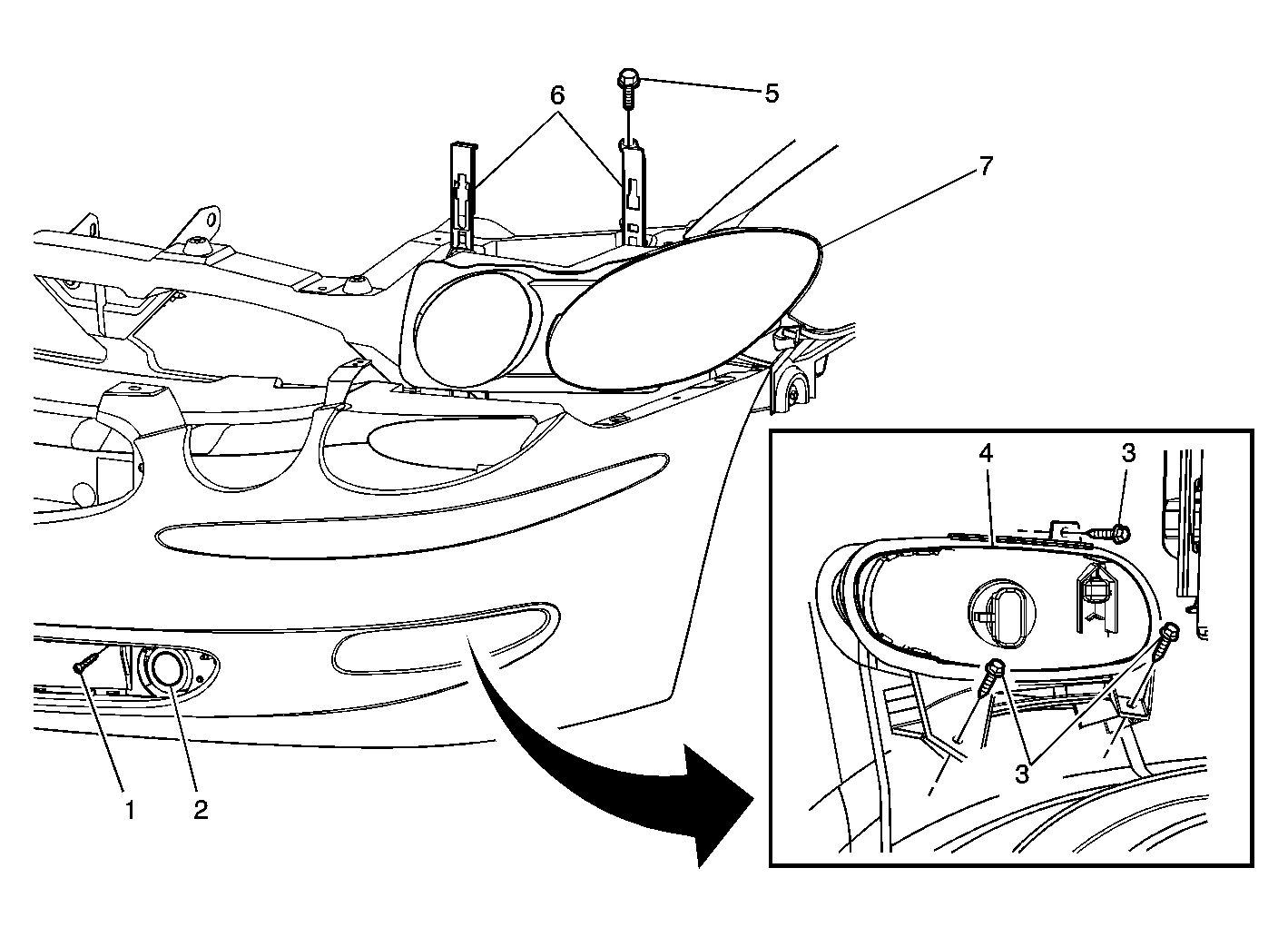

Fig 1: Removing/Installing Headlamp, Fog Lamp, Turn Signal Lamp & Side Marker Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Fog Lamp Assembly Replacement
1	Screw, Fog Lamp (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Lamp Assembly, Front Turn Signal CAUTION: Refer to Halogen Bulb Caution in Cautions and Notices. Tip: Disconnect the electrical connector. Aim lamp as necessary.
Front Park Lamp Replacement Preliminary Procedures: Remove the front fender liner to gain access to the front side marker lamp. Refer to Fender, Fender Insulator, Wheelhouse Liner Replacement - Front in Body Front End.
3	Screw, Park Lamp (Qty: 3) Tighten: 2 N.m (18 lb in)
4	Lamp Assembly, Front Park Lamp Marker Tip: Twist the bulb socket and pull inward to replace the bulb.
Headlamp Lamp Assembly Replacement
5	Bolt, Headlamp Retainer (Qty: 1) Tighten: 10 N.m (89 lb in)
6	Retainer, Headlamp (Qty: 2)
7	Headlamp Assembly CAUTION: Refer to Halogen Bulb Caution in Cautions and Notices. Tip: Disconnect the electrical connector. Aim lamp as necessary. Remove the two push pins on the upper fascia to remove headlamp.
