Ashtray Replacement
Ashtray Replacement

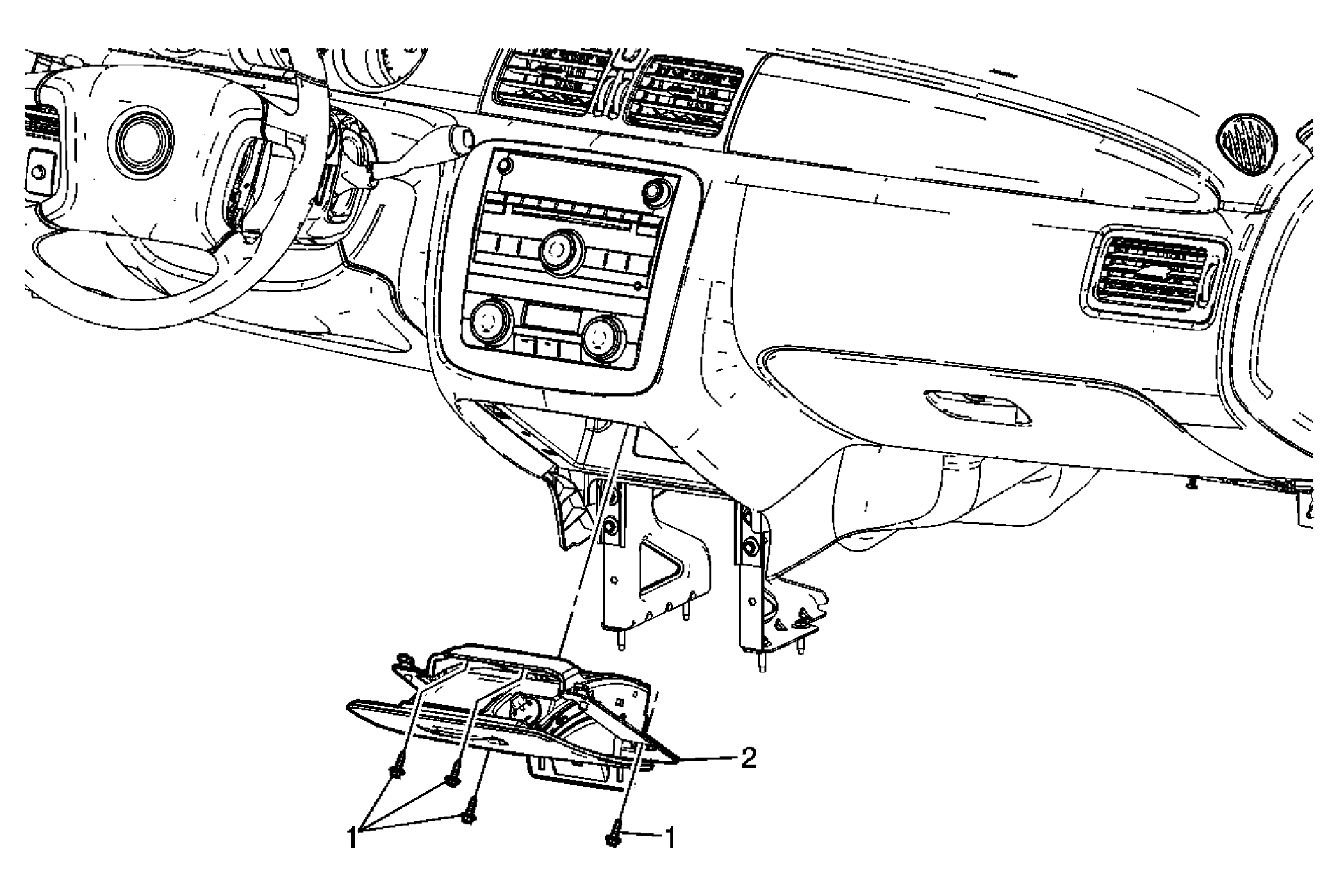

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the Ashtray Side Panel. Refer to Ashtray Side Panel Replacement . |
|
| 1 | Ashtray Assembly Screws (Qty: 4) Tighten: 2 N.m (18 lb in) |
| 2 | Ashtray Assembly Tip: Disconnect the electrical connections. |
