Ashtray Side Panel Replacement

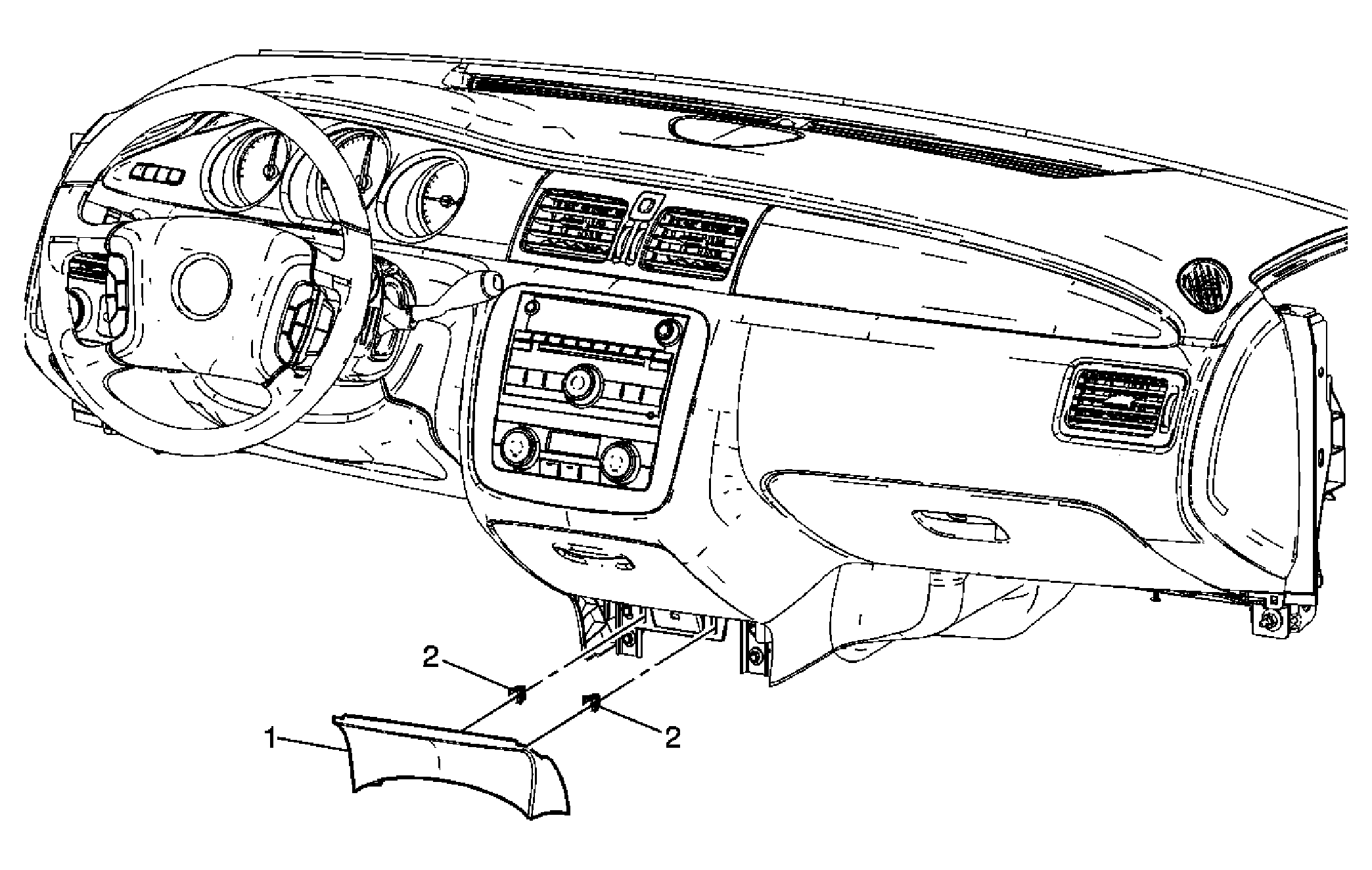

Fig 1: Identifying Ashtray Side Panel
GM1661302Courtesy of GENERAL MOTORS CORP.
Ashtray Side Panel Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Ashtray Side Panel
2 Retainer Clips (Qty: 2)
