Fascia Grille Replacement
Fascia Grille Replacement

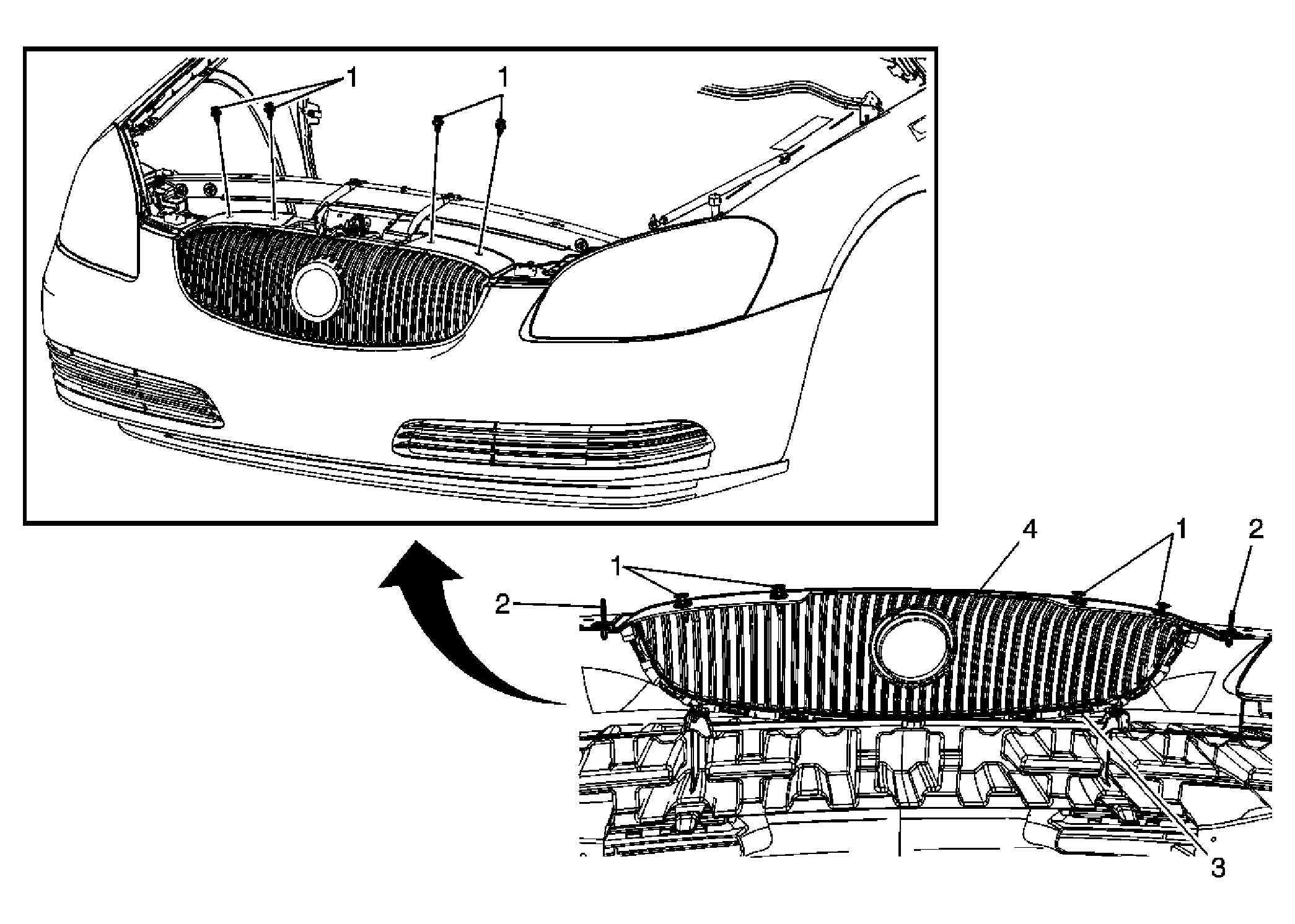

Fig 1: Identifying Fascia Grille
Courtesy of GENERAL MOTORS CORP.
Fascia Grille Replacement
Callout
Component Name
1
Front Fascia Grille Retainers (Qty: 4)
2
Fascia Grille Rivets (Qty: 2)
3
Front Fascia Grille Integral Snaps (Qty: 10)
4
Front Fascia Grille
Courtesy of GENERAL MOTORS CORP.
