Rear Side Door Hinge Replacement

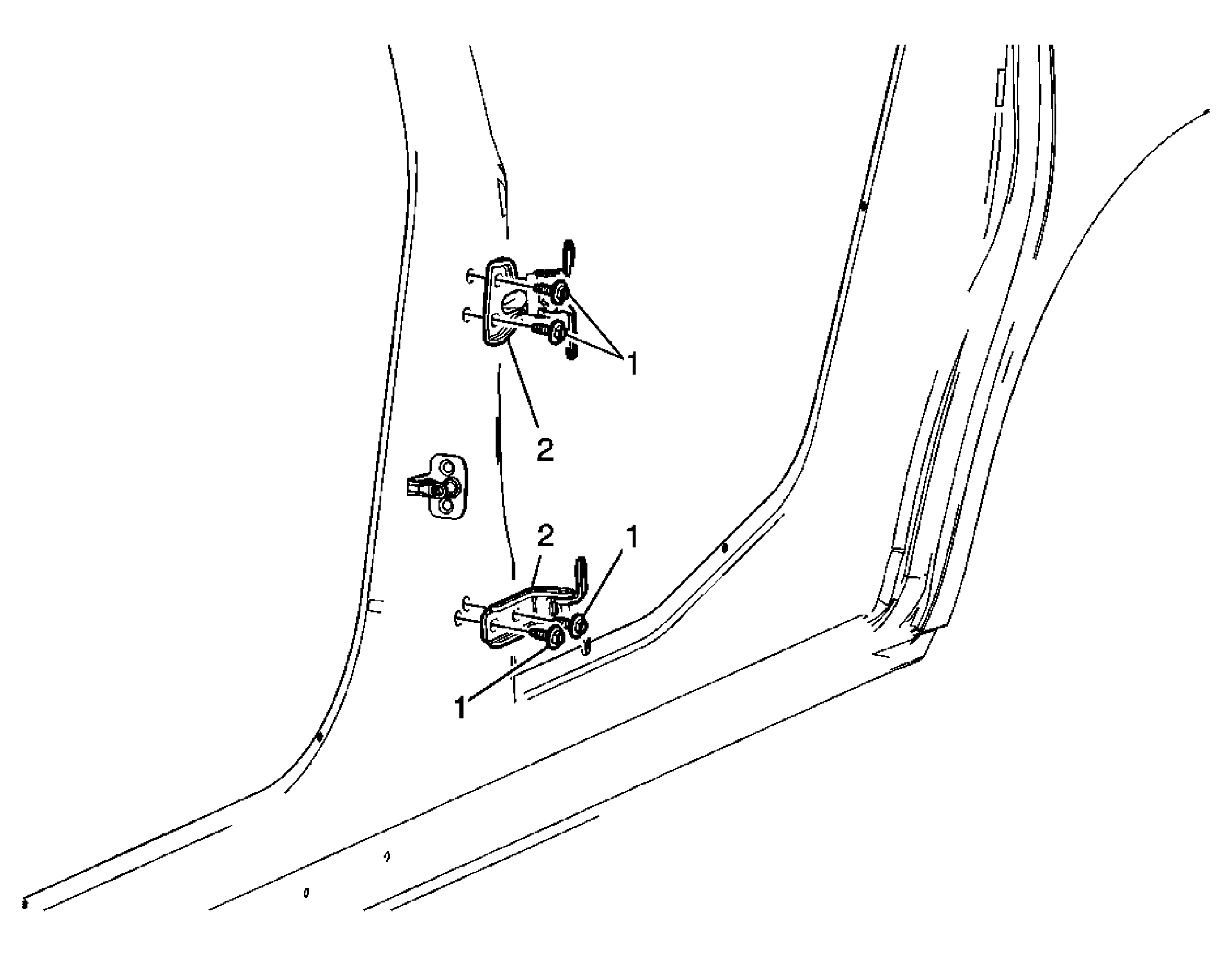

Fig 1: Identifying Rear Side Door Hinge Bolts
GM1663210Courtesy of GENERAL MOTORS CORP.
Rear Side Door Hinge Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear door. Refer to Rear Door Replacement .
1 Rear Door Hinge Bolts (Qty: 4)

Tighten:  34 N.m (25 lb ft)
2 Rear Door Hinges (Qty: 2)
