Rear Door Replacement

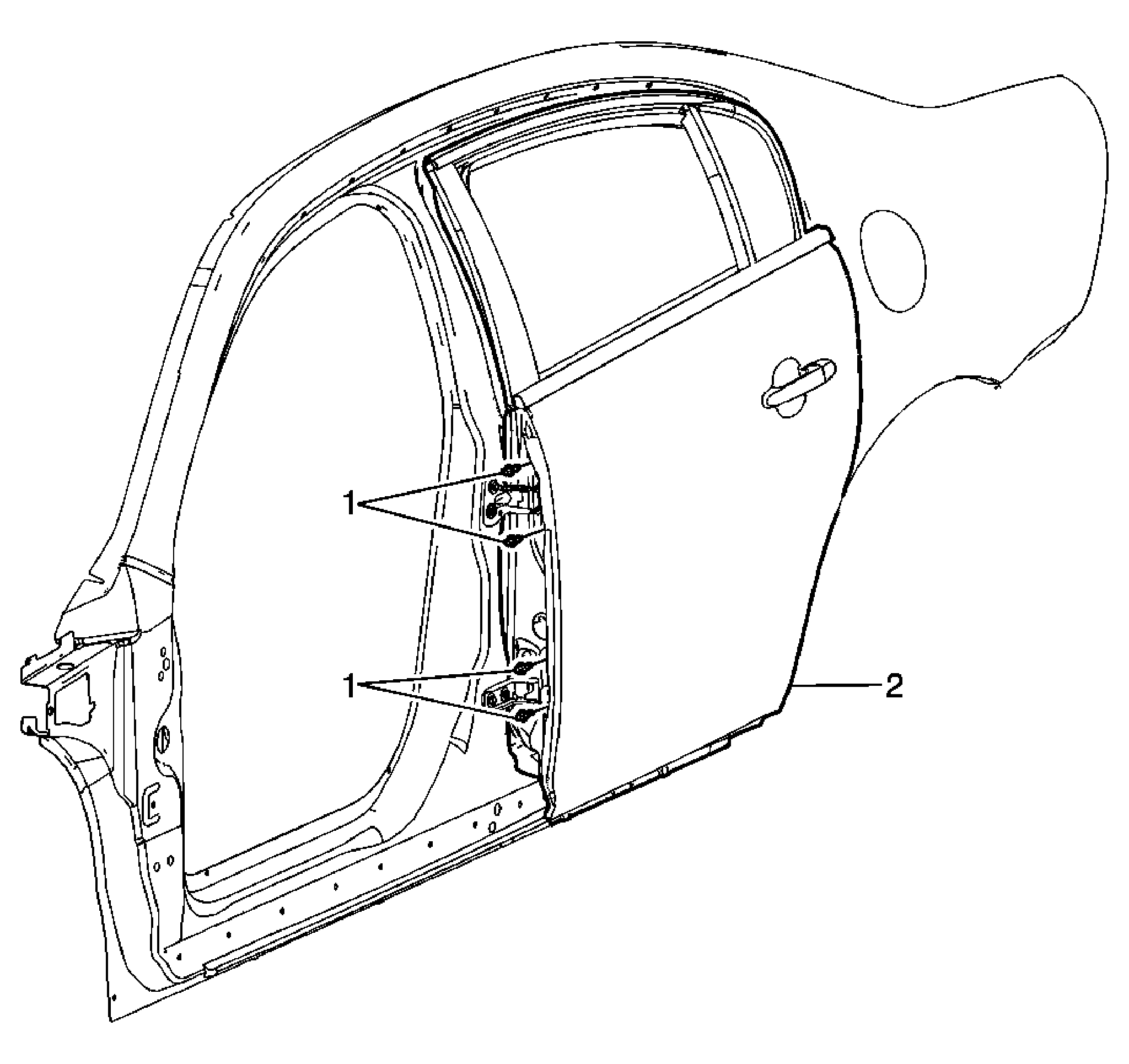

Fig 1: View Of Rear Side Door & Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Rear Door Hinge Bolts (Qty: 4) Tip: Support the door before removing the hinge bolts. Disconnect the door electrical connector. Tighten: 34 N.m (25 lb ft)
2	Rear Door Assembly Tip: When replacing the door it is necessary to transfer all of the internal components.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Rear Door Hinge Bolts (Qty: 4)
Tip:

Tighten: 34 N.m (25 lb ft)

Rear Door Assembly
Tip: When replacing the door it is necessary to transfer all of the internal components.
