Rear Compartment Lid Replacement

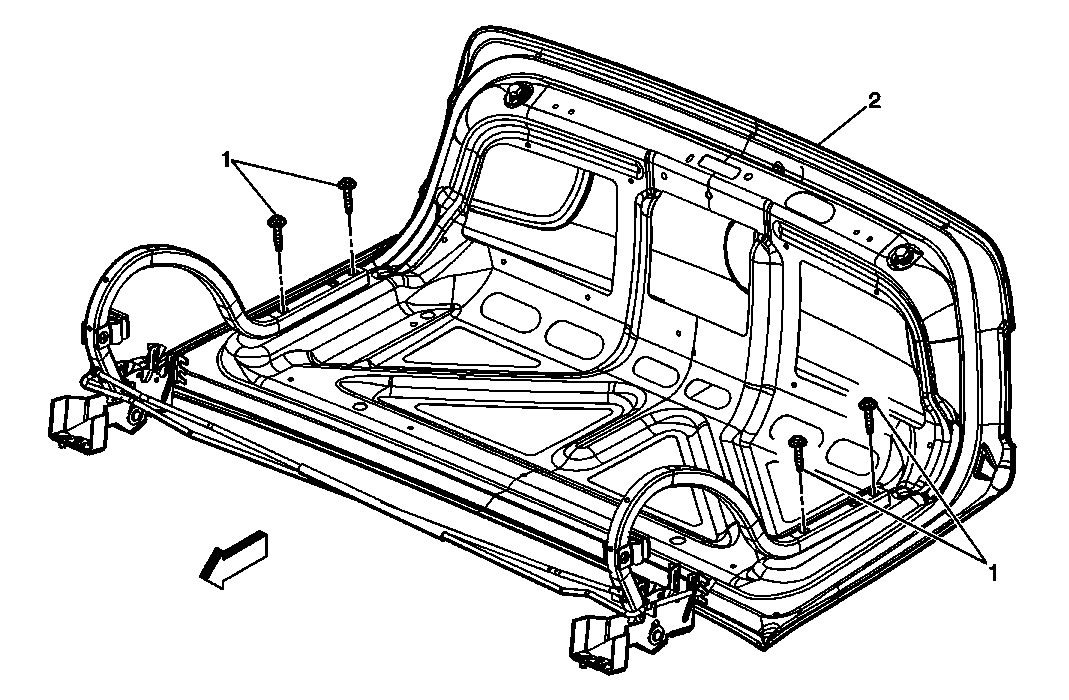

Fig 1: View Of Rear Compartment Lid

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear auxiliary turn signal lamps. Refer to Rear Auxiliary Turn Signal Lamp Replacement . Remove the rear lid latch. Refer to Rear Compartment Lid Latch Replacement . Remove the compartment lid trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Rear Compartment Lid Bolts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 25 N.m (19 lb ft)
2	Rear Compartment End Tip: Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Remove the rear auxiliary turn signal lamps. Refer to Rear Auxiliary Turn Signal Lamp Replacement .
Remove the rear lid latch. Refer to Rear Compartment Lid Latch Replacement .
Remove the compartment lid trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

Rear Compartment Lid Bolts (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 25 N.m (19 lb ft)

Rear Compartment End
Tip: Disconnect the electrical connector.
