Rear Compartment Lid Latch Replacement

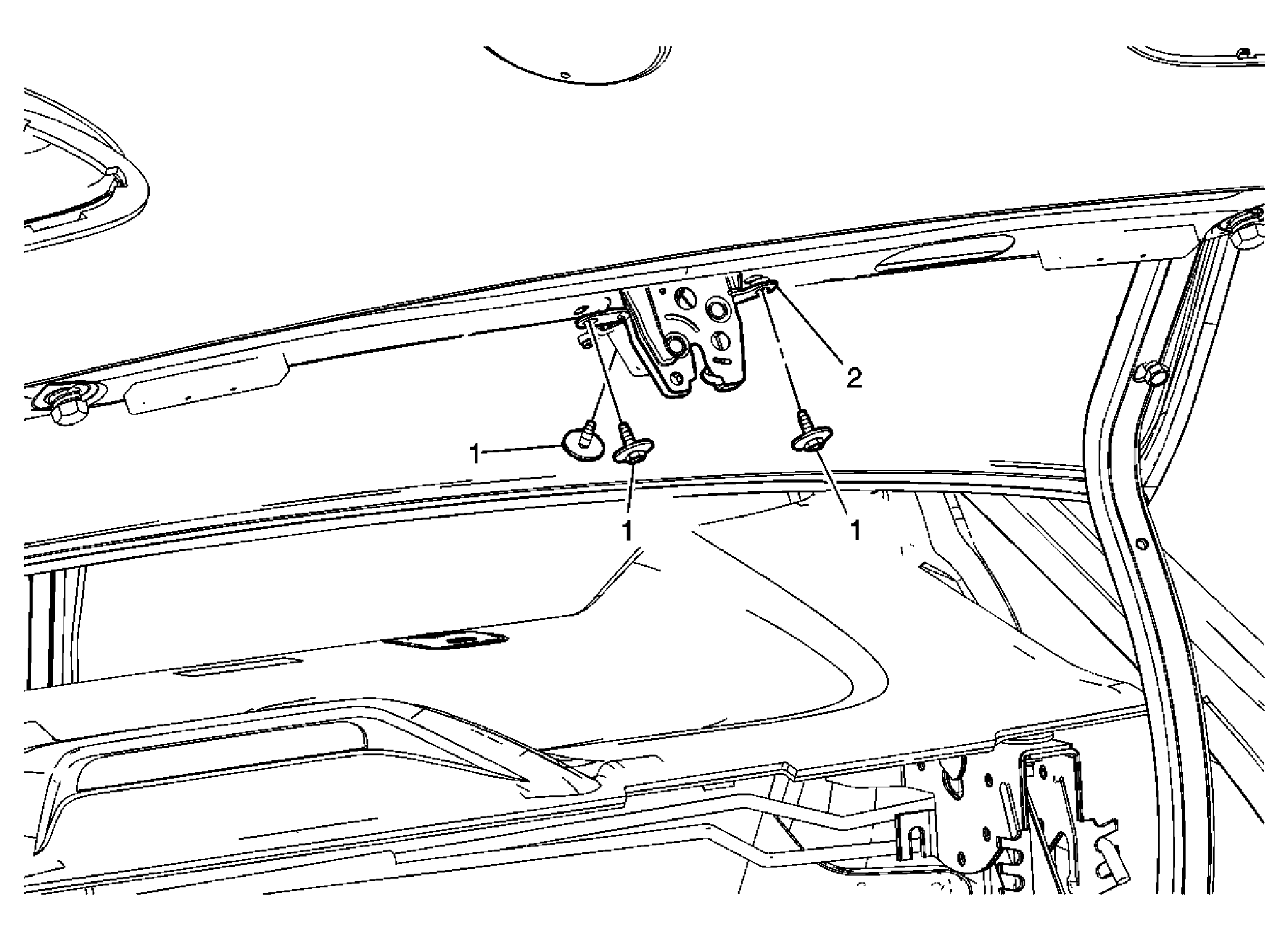

Fig 1: Identifying Rear Compartment Lid Latch

Courtesy of GENERAL MOTORS CORP.

Rear Compartment Lid Latch Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Rear Compartment Latch Bolts (Qty: 3) Tighten:  10 N.m (89 lb in)
2	Rear Compartment Latch Tip:  Disconnect electrical connection.
