Rear Compartment Lid Hinge Replacement

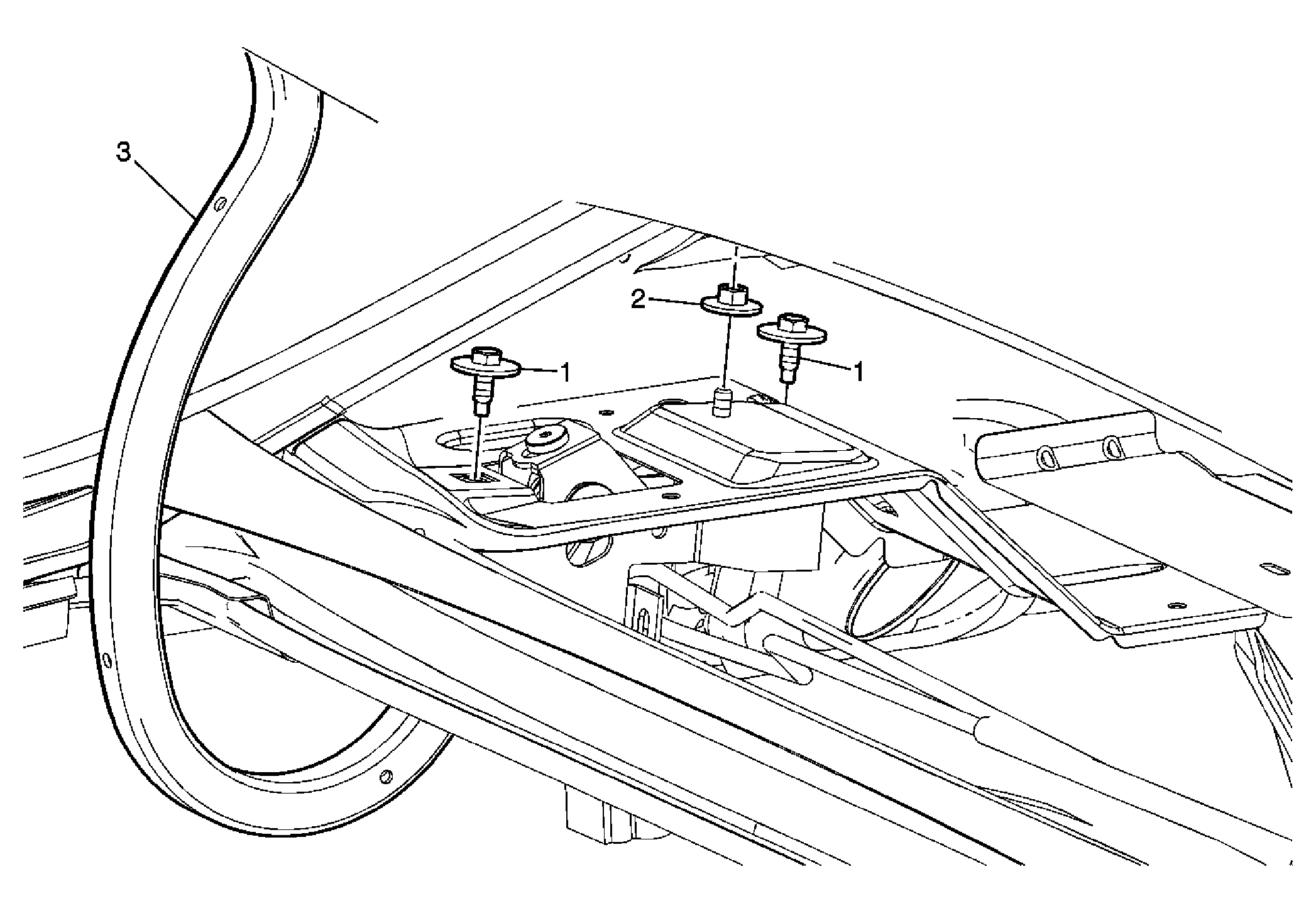

Fig 1: View Of Rear Compartment Lid Hinge

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement . Remove the torque rods. Refer to Rear Compartment Lid Hinge Torque Rod Replacement .
1	Rear Compartment Hinge Nut Tighten: 25 N.m (19 lb ft)
2	Rear Compartment Lid Hinge Bolts (Qty: 2) Tighten: 25 N.m (19 lb ft)
3	Rear Compartment Hinge
