Front Side Door Hinge Replacement
Front Side Door Hinge Replacement

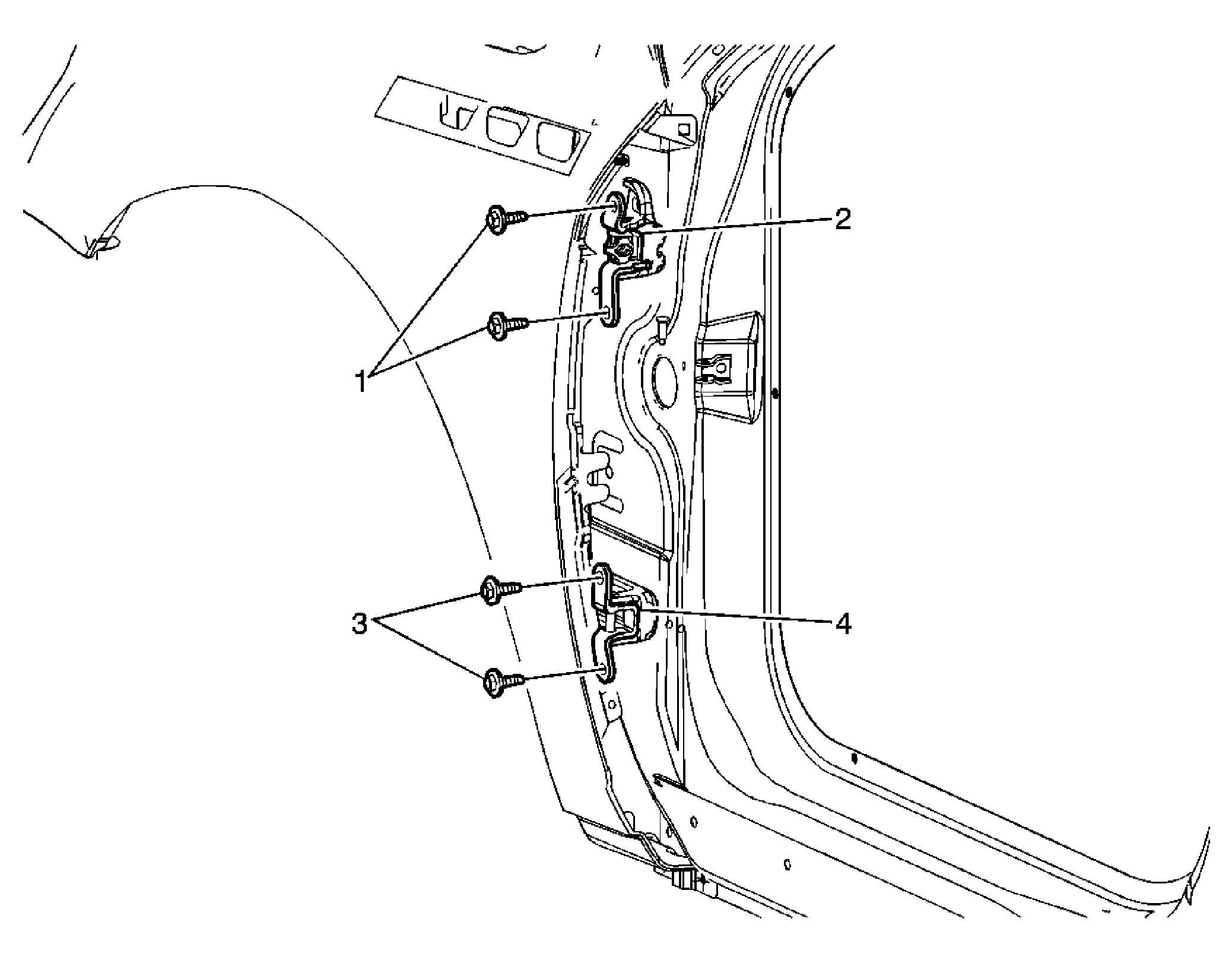

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
.Preliminary Procedure: Remove the front door. Refer to Front Side Door Replacement . |
|
| 1 | Upper Hinge Bolts (Qty: 2) Tighten: 34 N.m (25 lb ft) |
| 2 | Upper Hinge Tip: With a grease pencil mark the position of the hinge. |
| 3 | Lower Hinge Bolts (Qty: 2) Tighten: 34 N.m (25 lb ft) |
| 4 | Lower Hinge Tip: With a grease pencil mark the position of the hinge. |
