Front Side Door Replacement

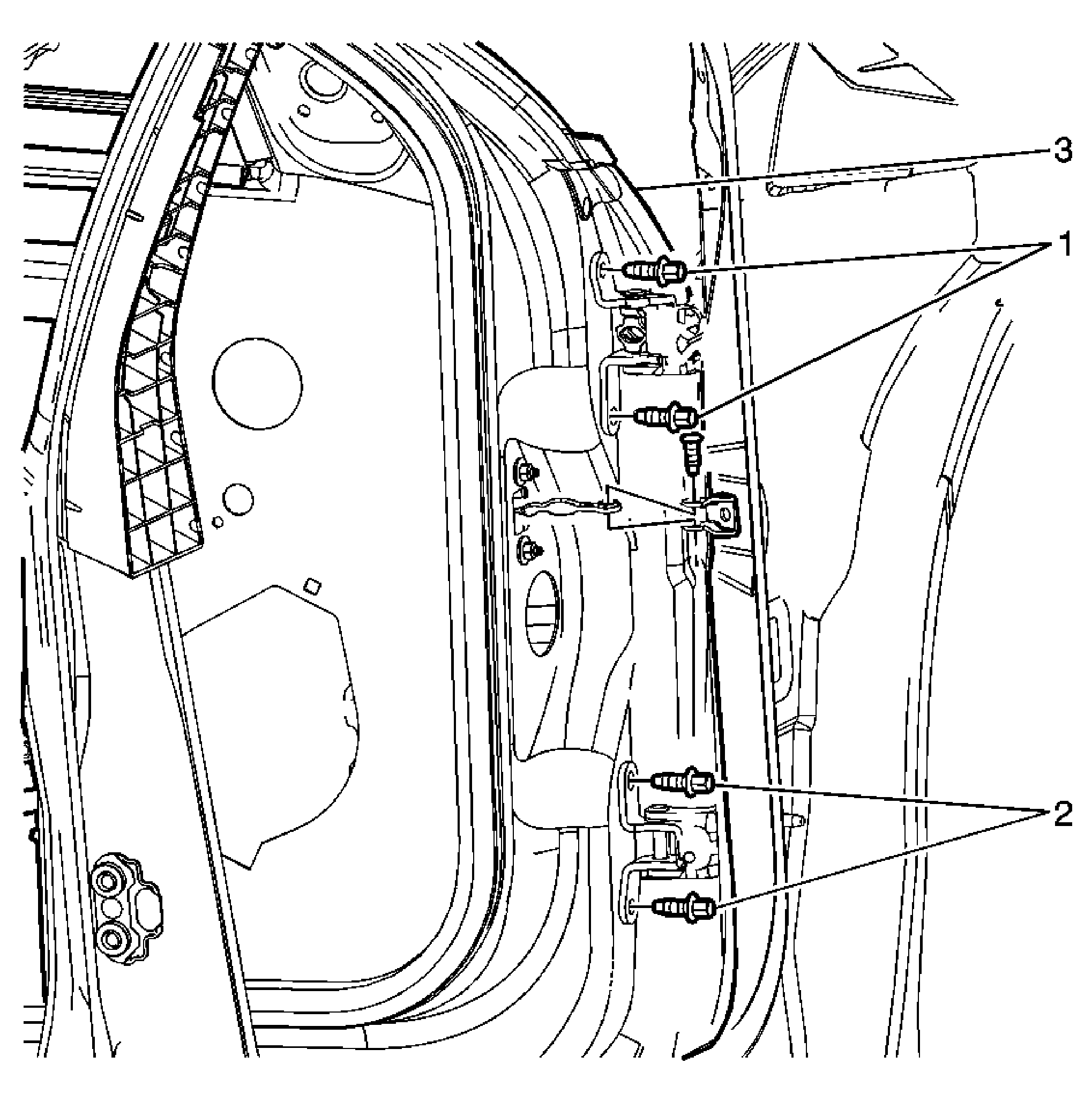

Fig 1: Identifying Front Side Door Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Door Check Link Pin
2	Bolt, Front Side Door Hinge (Qty: 4) Tip: Support the door before removing the hinge bolts. Disconnect the door electrical connector. Tighten: 34 N.m (25 lb ft)
3	Front Side Door Outer Hinge (Qty: 2)
4	Door Assembly, Front Side Tip: When replacing the door it is necessary to transfer all of the internal components.
