Wiper Arm Replacement
Wiper Arm Replacement

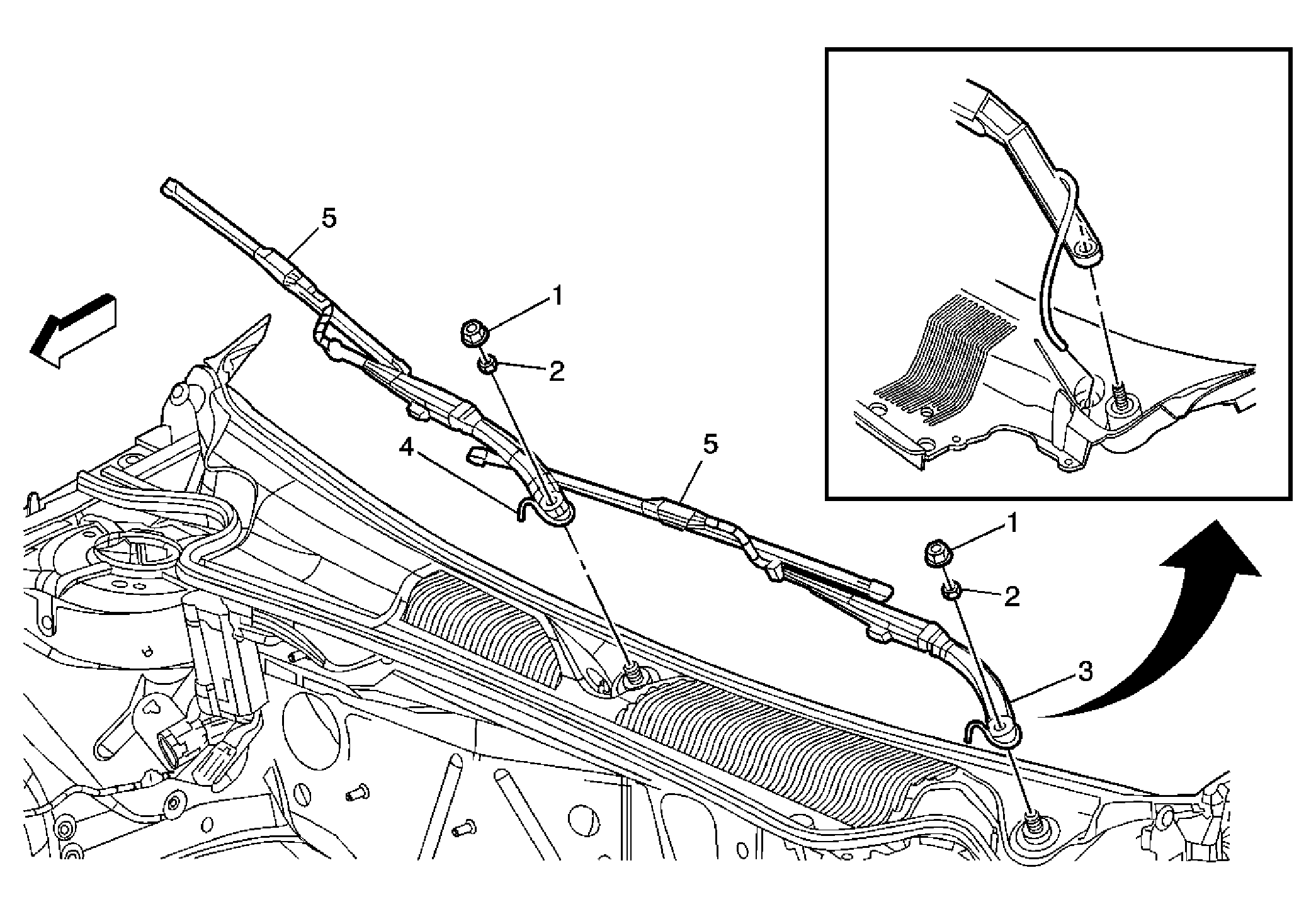

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the wiper arm blades. Refer to Wiper Arm Blade Replacement . |
|
| 1 | Windshield Washer Arm Finish Cap Tip: Use a small flat-bladed tool to remove the finish cap. |
| 2 | Windshield Washer Arm Nut
NOTE:
Refer to Fastener Notice
. Tip: Hold the wiper arm blade tip to the target points in the lower blackout area of the windshield while tightening the nut. Tighten: 32 N.m (24 lb ft). |
| 3 | Windshield Washer Arm Assembly Tip: Use a J 39637 or slightly rock the arm on the wiper pivot shaft to remove. |
| 4 | Windshield Wiper Arm Hose Tip: Note the correct hose routing around the wiper arm, see insert. |
| 5 | Wiper Arm |
