Wiper Arm Blade Replacement

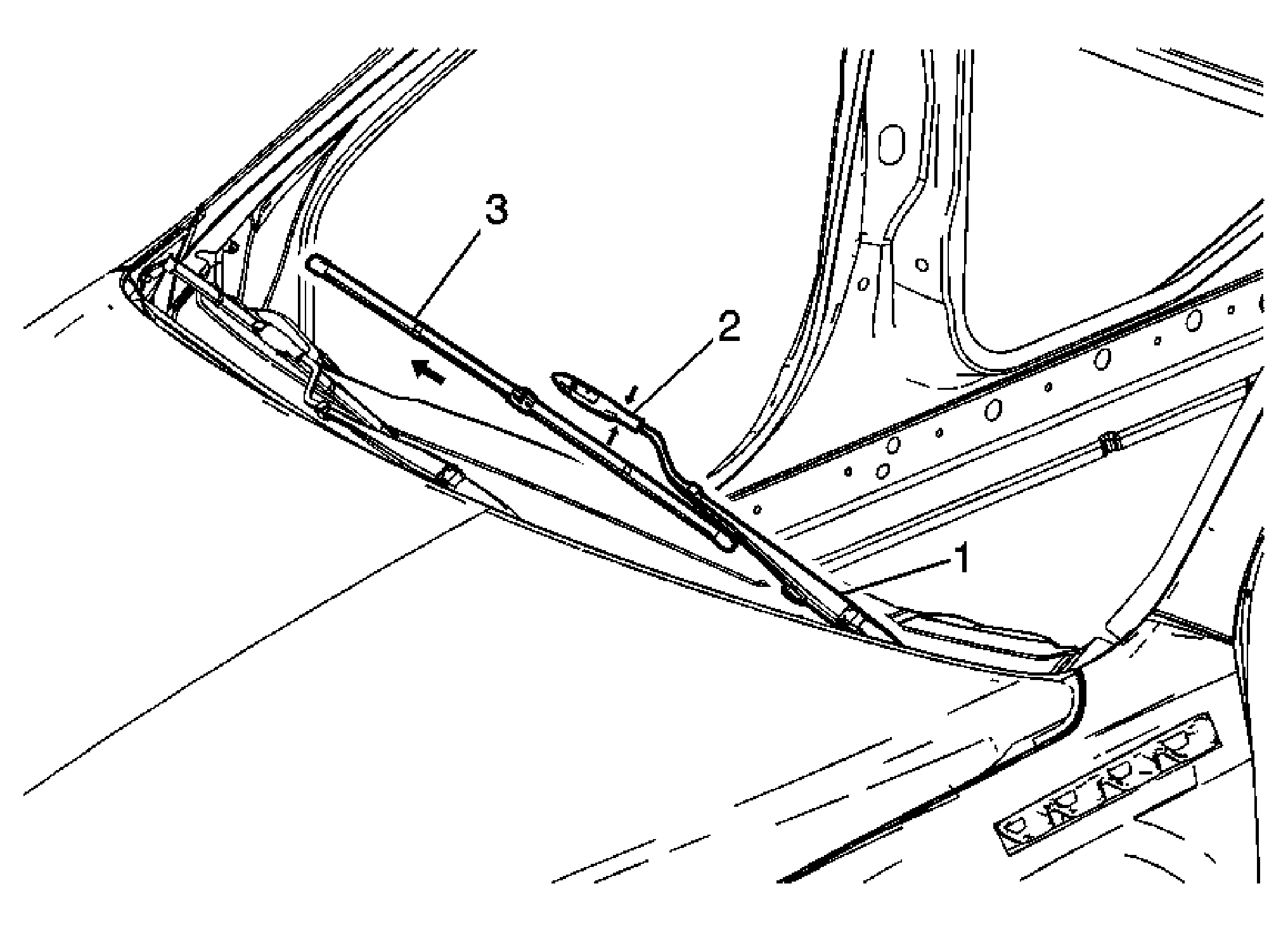

Fig 1: View Of Windshield Wiper Blades

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Raise the wiper arm to the full up position, (service up).
1	Windshield Wiper Arm Assembly
2	Windshield Wiper Arm Blade Tabs Tip: Squeeze both tabs and rotate the blade forward, away from the arm to remove.
3	Windshield Washer Blade Assembly Tip: Discard the blade if the rubber element appears worn, or does not wipe the windshield clean.
