Air Inlet Grille Panel Replacement

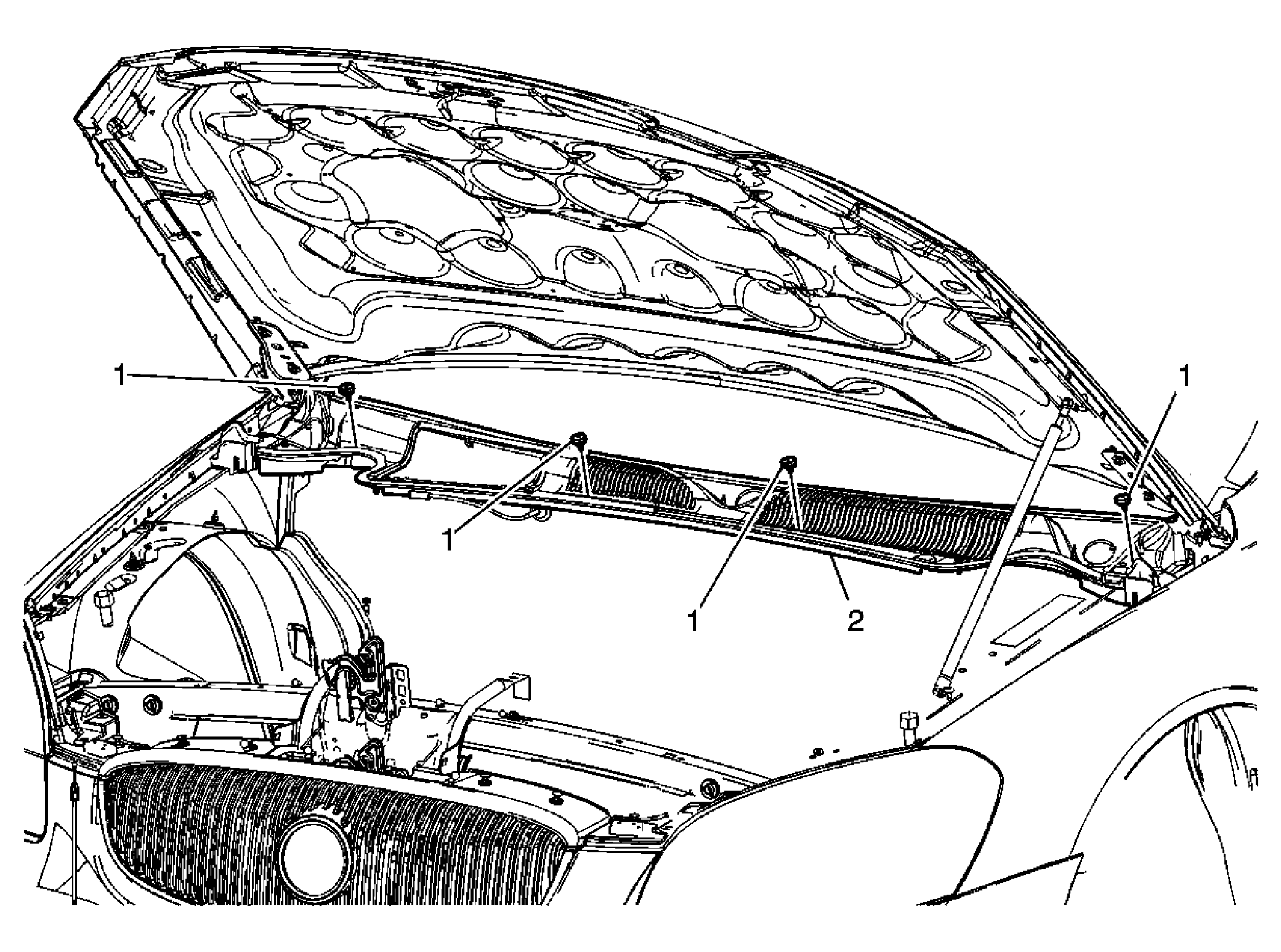

Fig 1: Identifying Air Inlet Grille Panel & Retainers
GM1629721Courtesy of GENERAL MOTORS CORP.
Air Inlet Grille Panel Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove wiper arms. Refer to Wiper Arm Replacement .
1 Air Inlet Grille Retainers (Qty: 4)
2 Air Inlet Grille
