Headlamp Switch Replacement

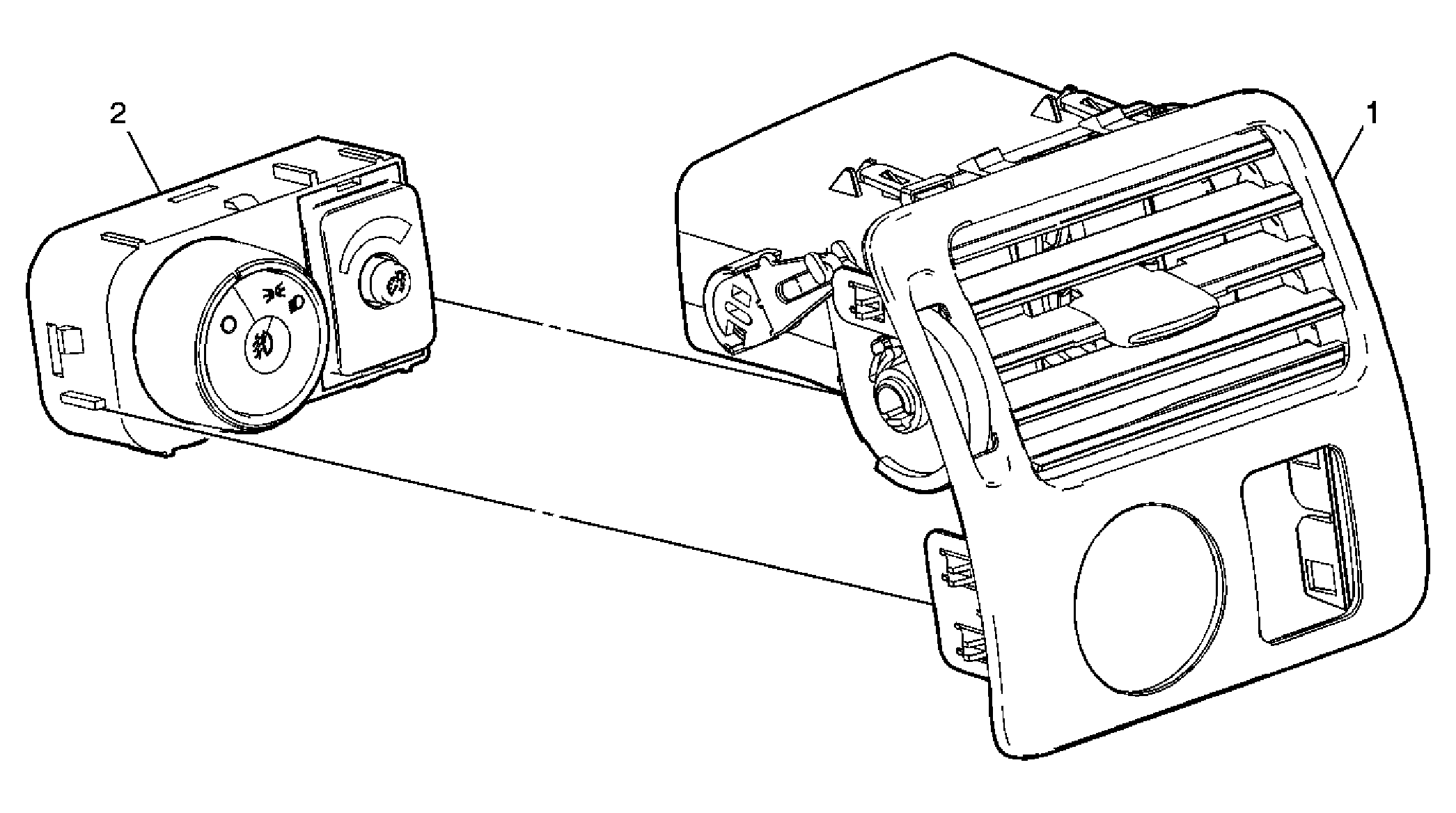

Fig 1: Identifying Headlamp Switch
GM1646739Courtesy of GENERAL MOTORS CORP.
Headlamp Switch Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Instrument Panel Outer Air Outlet Assembly Left
Refer to Air Outlet Replacement - Instrument Panel - Left .
2 Headlamp Switch Assembly
