Secondary Camshaft Intermediate Drive Chain Installation - Left Side (Second Design - 2007)

Tools Required

• EN-48383  Camshaft Retaining Tools. See Special Tools .
• EN-48589  Crankshaft Rotation Socket. See Special Tools .

Fig 1: Installing EN 48383-1
Courtesy of GENERAL MOTORS CORP.
IMPORTANT:
• To determine camshaft timing drive design Refer to Camshaft Timing Drive Design Identification .
• There should be no need to rotate the camshaft more than 10 degrees. Using the hex cast into the camshaft rotate the camshaft in order to install the EN 48383-1  . See Special Tools .
1. Install the EN 48383-1 onto the rear of the left camshafts.
IMPORTANT: All camshafts must be locked in place before installation of any camshaft drive chains.
2. Ensure that the EN 46105-1 is fully seated onto the camshafts.
Fig 2: Aligning Stage One Timing Mark On Oil Pump Cover
Courtesy of GENERAL MOTORS CORP.
3. Ensure the crankshaft is in the stage one timing position with the crankshaft sprocket timing mark (1) aligned to the stage one timing mark on the oil pump cover (2) using the EN 48589  . Refer to Second Design 2007 . Special Tools .
Fig 3: Left Secondary Camshaft Drive Chain
Courtesy of GENERAL MOTORS CORP.
4. Install the left secondary camshaft drive chain.

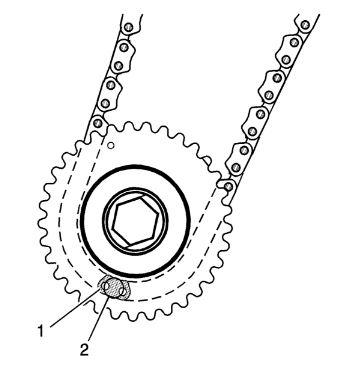

Fig 4: Camshaft Drive Chain Link
Courtesy of GENERAL MOTORS CORP.
5. Place the left secondary camshaft drive chain around the inner sprocket of the left camshaft intermediate drive chain idler with the timing camshaft drive chain link (1) aligned to the alignment access hole (2) made in the left camshaft intermediate drive chain idler outer sprocket.

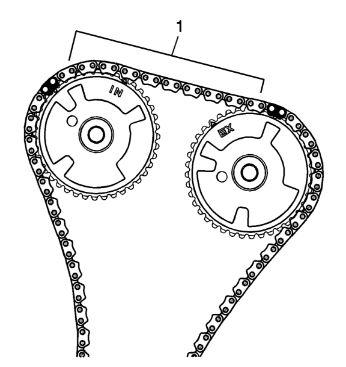

Fig 5: Identifying 10 Links Between The Timing Camshaft Drive Chain Links For The Camshaft Position Actuator Sprockets
Courtesy of GENERAL MOTORS CORP.
6. Wrap the secondary camshaft drive chain around both left actuator drive sprockets.
7. Ensure there are 10 links (1) between the timing camshaft drive chain links for the camshaft position actuator sprockets.
Fig 6: Locating Left Exhaust Camshaft Position Actuator Sprocket Alignment Circle Mark
Courtesy of GENERAL MOTORS CORP.
8. Align the left exhaust camshaft position actuator sprocket alignment circle mark (2) with the timing camshaft drive chain link (1).
Fig 7: View Of Timing Camshaft Drive Chain Link & Left Intake Camshaft Position Actuator Sprocket Alignment Circle Mark
Courtesy of GENERAL MOTORS CORP.
9. Align the left intake camshaft position actuator sprocket alignment circle mark (1) with the timing camshaft drive chain link (2).
