Second Design 2007

WARNING: This page is about a different variant/trim than selected.

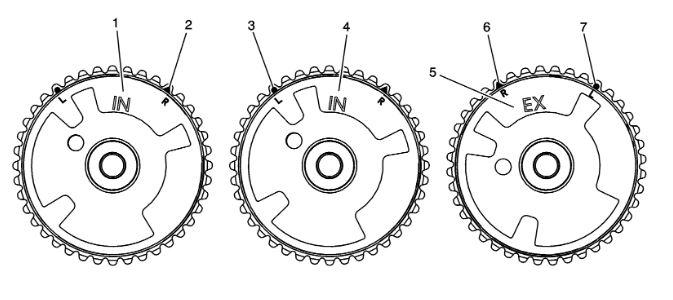

Fig 1: Camshaft Position Actuator Timing Marks
G00577843Courtesy of GENERAL MOTORS CORP.
  1. Right Intake Camshaft Position Actuator Identifier
  2. Right (R) Intake Camshaft Position Actuator Timing Mark- Triangle
  3. Left (L) Intake Camshaft Position Actuator Timing Mark- Circle
  4. Left Intake Camshaft Position Actuator Identifier
  5. Exhaust Camshaft Position Actuator Identifier
  6. Right (R) Exhaust Camshaft Position Actuator Timing Mark- Triangle
  7. Left (L) Exhaust Camshaft Position Actuator Timing Mark- Circle

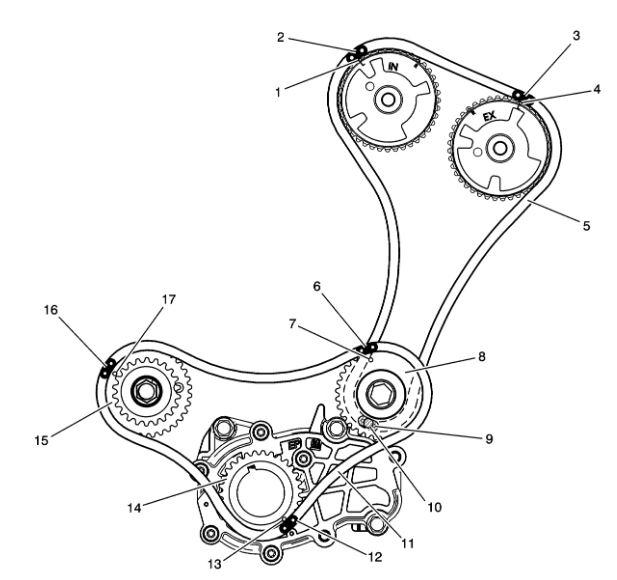

Fig 2: Stage One
G00577844Courtesy of GENERAL MOTORS CORP.
  1. Left (L) Intake Camshaft Position Actuator Timing Mark- Circle
  2. Left Intake Secondary Camshaft Timing Drive Chain Timing Link
  3. Left Exhaust Secondary Camshaft Timing Drive Chain Timing Link
  4. Left (L) Exhaust Camshaft Position Actuator Timing Mark- Circle
  5. Left Secondary Camshaft Timing Drive Chain
  6. Primary Camshaft Drive Chain Timing Link for the Left Primary Camshaft Intermediate Drive Chain Sprocket
  7. Left Primary Camshaft Intermediate Drive Chain Sprocket Timing Mark for the Primary Camshaft Drive Chain
  8. Left Primary Camshaft Intermediate Drive Chain Sprocket
  9. Left Secondary Camshaft Timing Drive Chain Timing Link for the Left Primary Camshaft Intermediate Drive Chain Sprocket - Behind Hole in Sprocket
  10. Left Primary Camshaft Intermediate Drive Chain Sprocket Timing Window for the Left Secondary Camshaft Timing Drive Chain Timing Link
  11. Primary Camshaft Drive Chain
  12. Primary Camshaft Drive Chain Timing Link for the Crankshaft Sprocket
  13. Crankshaft Sprocket Timing Mark
  14. Crankshaft Sprocket
  15. Right Primary Camshaft Intermediate Drive Chain Sprocket
  16. Primary Camshaft Drive Chain Timing Link for the Right Primary Camshaft Intermediate Drive Chain Sprocket
  17. Right Primary Camshaft Intermediate Drive Chain Sprocket Timing Mark

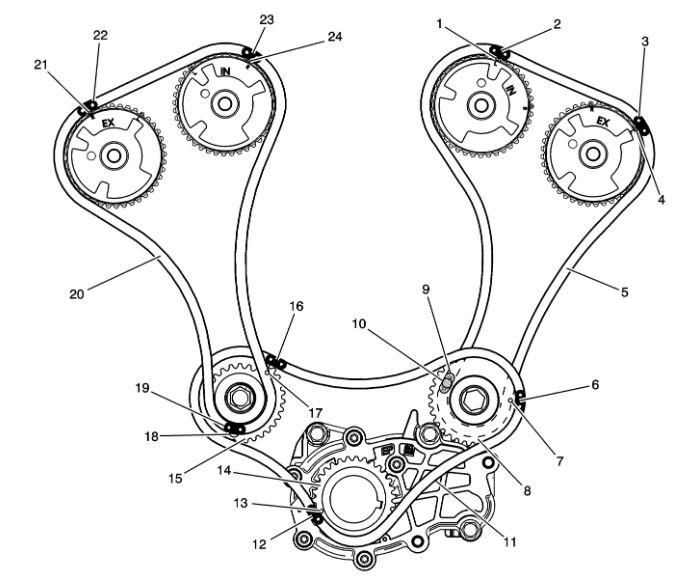

Fig 3: Stage Two
G00577845Courtesy of GENERAL MOTORS CORP.
  1. Left (L) Intake Camshaft Position Actuator Timing Mark- Circle
  2. Left Intake Secondary Camshaft Timing Drive Chain Timing Link
  3. Left Exhaust Secondary Camshaft Timing Drive Chain Timing Link
  4. Left (L) Exhaust Camshaft Position Actuator Timing Mark- Circle
  5. Left Secondary Camshaft Timing Drive Chain
  6. Primary Camshaft Drive Chain Timing Link for the Left Primary Camshaft Intermediate Drive Chain Sprocket
  7. Left Primary Camshaft Intermediate Drive Chain Sprocket Timing Mark for the Primary Camshaft Drive Chain
  8. Left Primary Camshaft Intermediate Drive Chain Sprocket
  9. Left Secondary Camshaft Timing Drive Chain Timing Link for the Left Primary Camshaft Intermediate Drive Chain Sprocket - Behind Hole in Sprocket
  10. Left Primary Camshaft Intermediate Drive Chain Sprocket Timing Window
  11. Primary Camshaft Drive Chain
  12. Primary Camshaft Drive Chain Timing Link for the Crankshaft Sprocket
  13. Crankshaft Sprocket Timing Mark
  14. Crankshaft Sprocket
  15. Right Primary Camshaft Intermediate Drive Chain Sprocket
  16. Primary Camshaft Drive Chain Timing Link for the Right Primary Camshaft Intermediate Drive Chain Sprocket
  17. Right Primary Camshaft Intermediate Drive Chain Sprocket Timing Mark for the Primary Camshaft Drive Chain
  18. Right Primary Camshaft Intermediate Drive Chain Sprocket Timing Mark/Window for the Right Secondary Camshaft Timing Drive Chain
  19. Right Secondary Camshaft Timing Drive Chain Timing Link for the Right Primary Camshaft Intermediate Drive Chain Sprocket
  20. Right Secondary Camshaft Timing Drive Chain
  21. Right (R) Exhaust Camshaft Position Actuator Timing Mark- Triangle
  22. Right Exhaust Secondary Camshaft Timing Drive Chain Timing Link
  23. Right Intake Secondary Camshaft Timing Drive Chain Timing Link
  24. Right (R) Intake Camshaft Position Actuator Timing Mark- Triangle
