Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

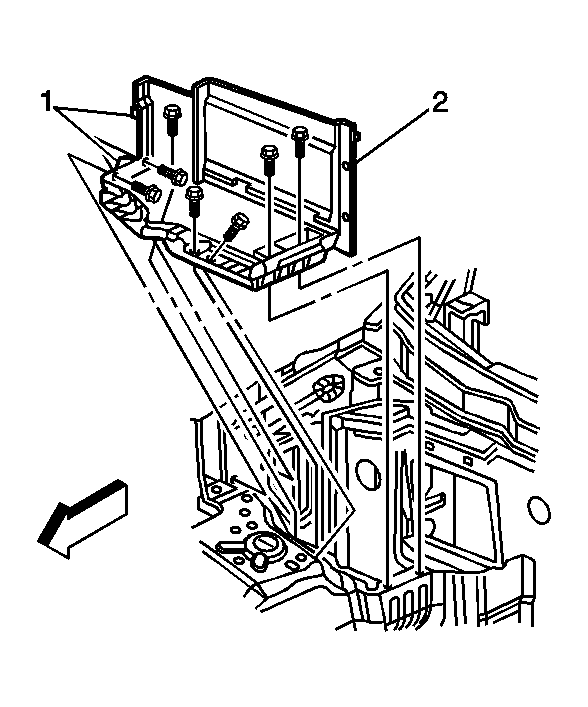

    Fig 1: View Of Battery Tray & Mounting Bolts
    GM776848Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Position the battery tray (2) to the vehicle, locating the alignment datums (1) with the holes in the inner fender.
  2. Install the battery tray bolts to the following:
    • The inner fender panel
    • The shock tower
    • The lower air inlet panel assembly

      Tighten:  Tighten the battery tray bolts to 6 N.m (53 lb in).

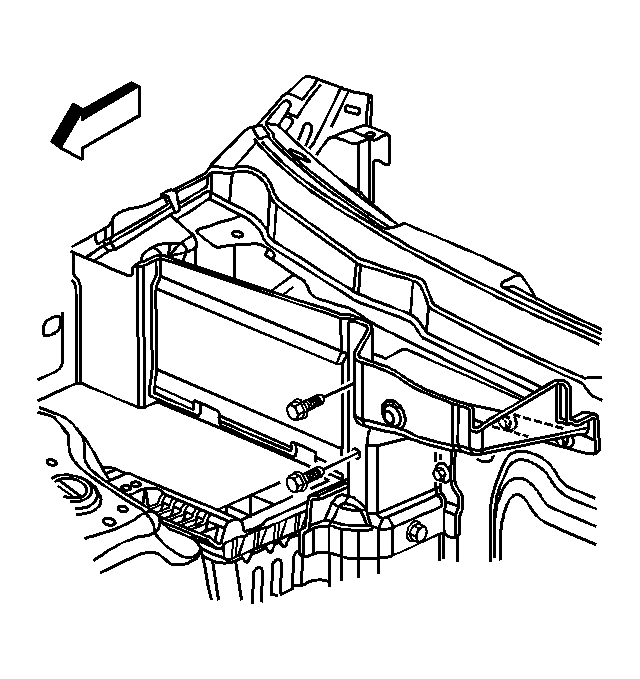

    3. Fig 2: Identifying Bolts To Front Air Inlet Panel Assembly To Battery Tray
    GM799787Courtesy of GENERAL MOTORS CORP.
  3. Install the 2 bolts securing the front air inlet panel assembly to the battery tray.

    Tighten:  Tighten the front air inlet panel assembly bolts to 6 N.m (53 lb in).

  4. Install the right air inlet grill panel. Refer to Air Inlet Grille Panel Replacement .
  5. Install the battery. Refer to Battery Replacement (LY7)  or Battery Replacement (L26)  or Battery Replacement (LS4) .
