Air Inlet Grille Panel Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

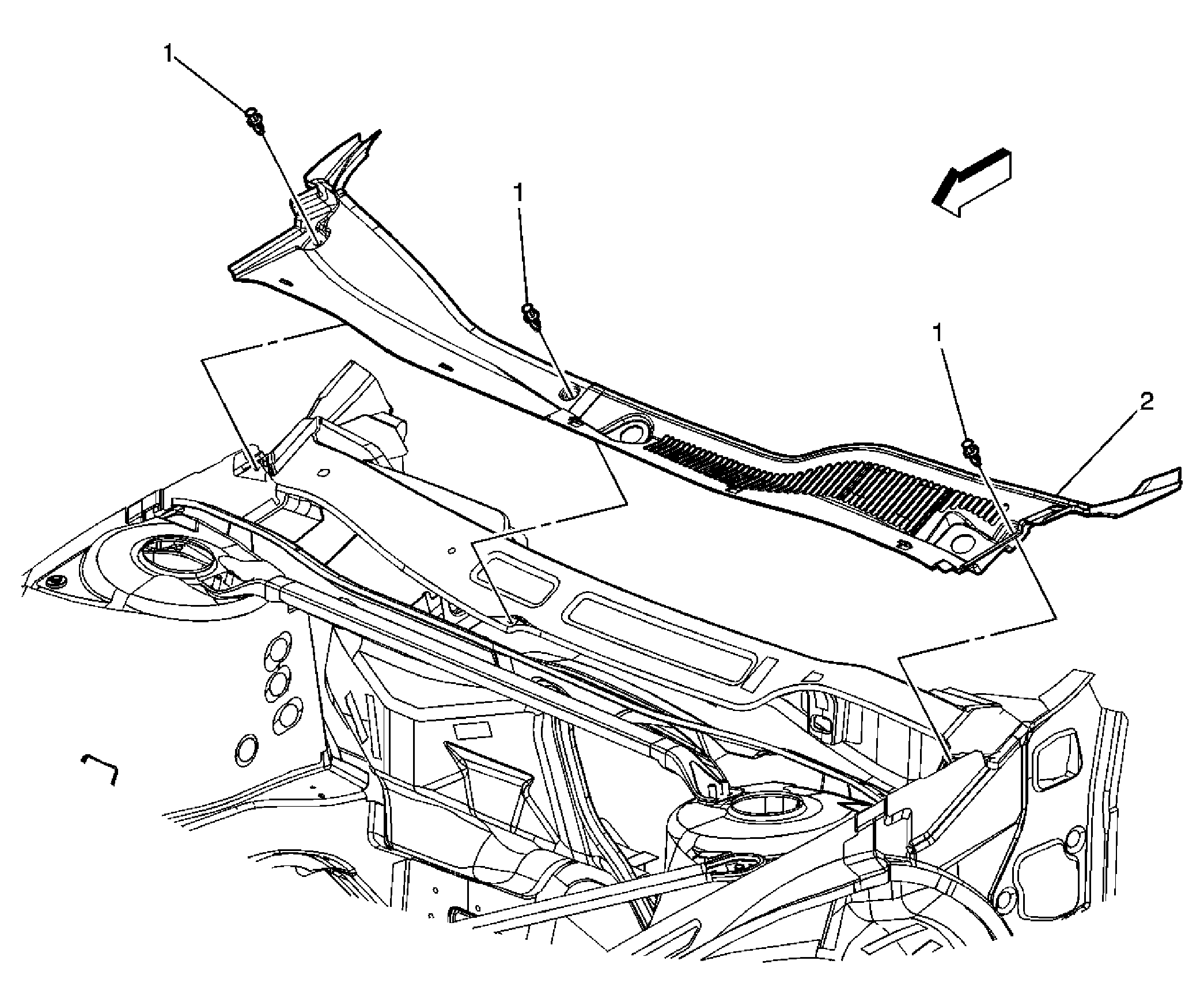

Fig 1: Replacing Air Inlet Grille Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove wiper arms. Refer to Windshield Wiper Arm Replacement .
1	Retainer, Air Inlet Grille Panel (Qty: 3)
2	Panel, Air Inlet Grille
