Recirculation Door Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

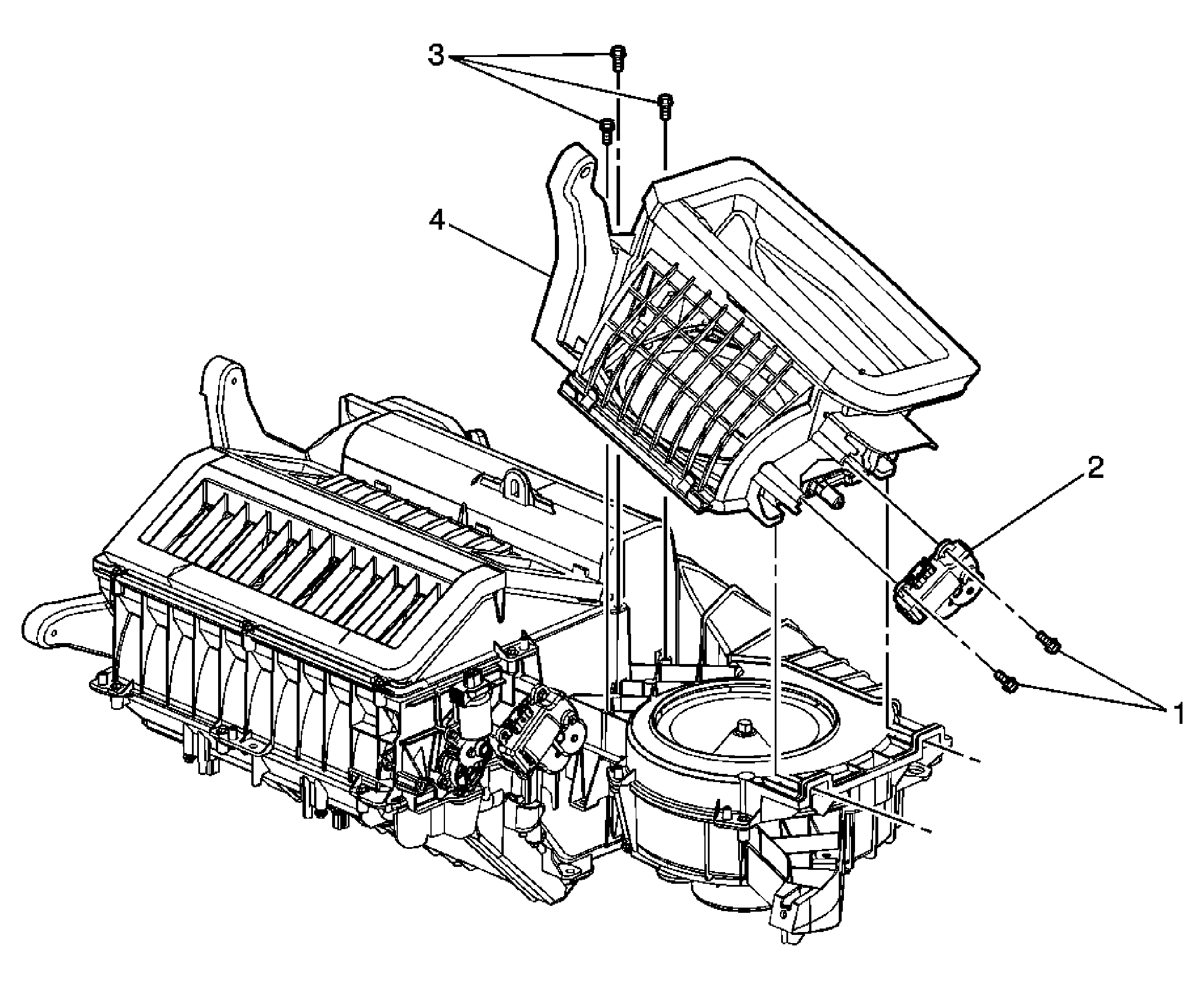

Fig 1: Identifying Recirculation Door & Associated Components
GM1537842Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the HVAC module assembly. Refer to HVAC Module Assembly Replacement .
1 Actuator Recirculation Screw (Qty: 2)
NOTE: Refer to Fastener Notice .

Tip:  Disconnect electrical connector.

Tighten:  1.5 N.m (13 lb in)
2 Recirculation Door Actuator
Tip:  Tilt recirculation door assembly to insert tabs into the HVAC module assembly.
3 Recirculation Door Assembly Screw (Qty: 3)

Tighten:  1.5 N.m (13 lb in)
4 Recirculation Assembly Door
