Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Blower Motor
    GM295331Courtesy of GENERAL MOTORS CORP.
  1. Install the blower motor.
    2. NOTE: Refer to Fastener Notice .
  2. Install the blower motor screws.

    Tighten:  Tighten the screws to 1.5 N.m (13 lb in).

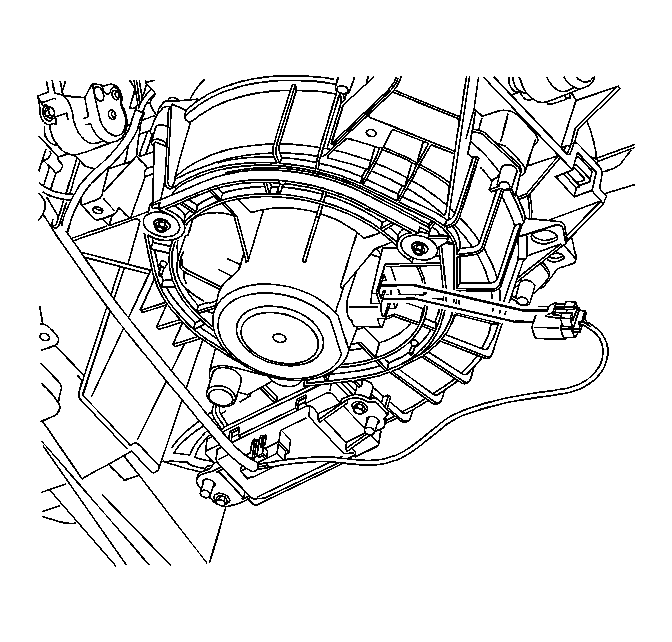

    3. Fig 2: Identifying Blower Motor Electrical Connector
    GM1262638Courtesy of GENERAL MOTORS CORP.
  3. Connect the blower motor electrical connector.
  4. Install the right side instrument panel insulator. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
