Instrument Panel Insulator Panel Replacement - Right Side

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

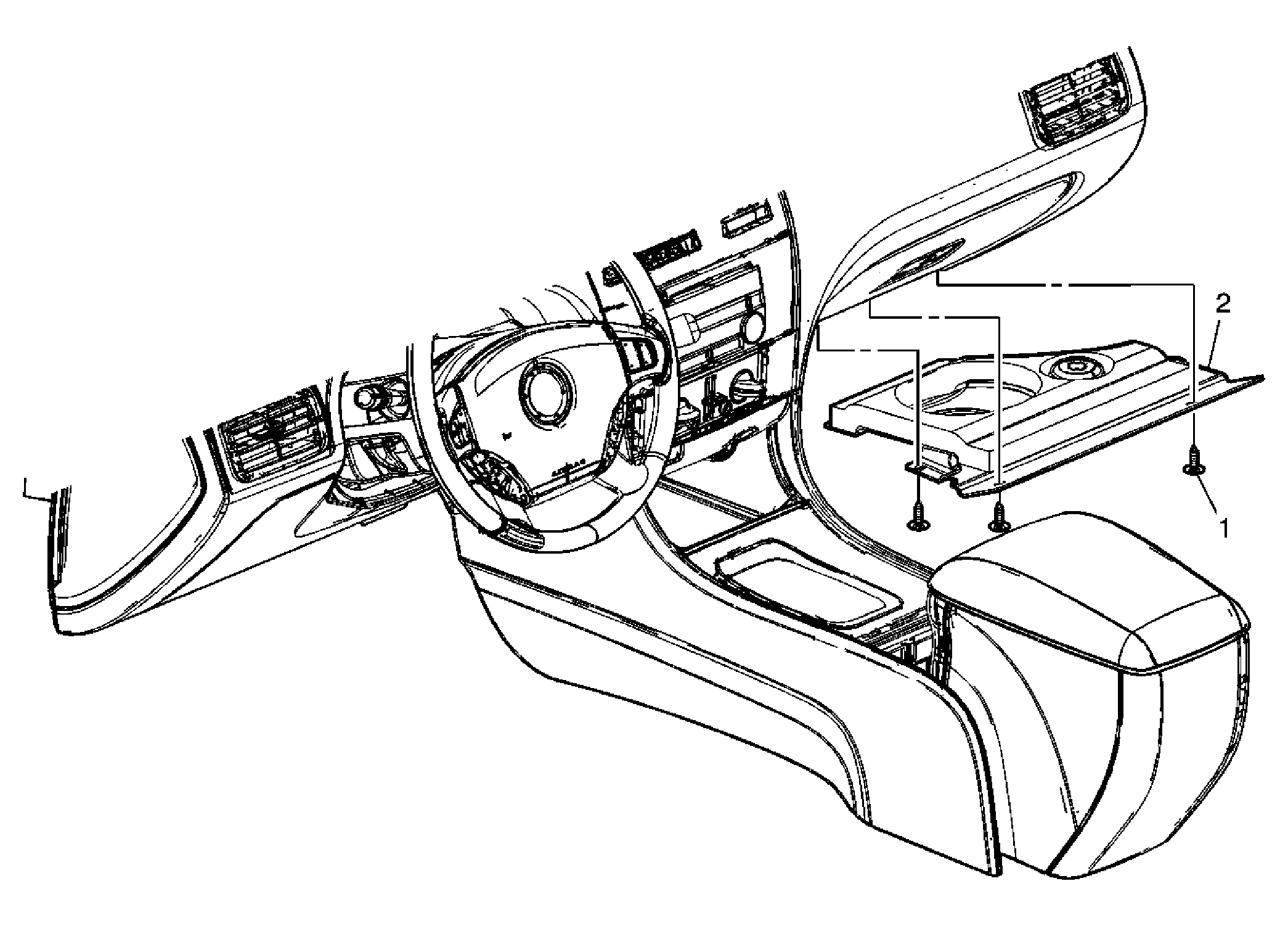

Fig 1: Identifying Right Closeout/Insulator Panel
GM1633101Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Instrument Panel Insulator Retainers (Qty: 3)
2 Instrument Panel Insulator
Tip:  Remove the courtesy lamp from the insulator before removal.
