Air Distributor Duct Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

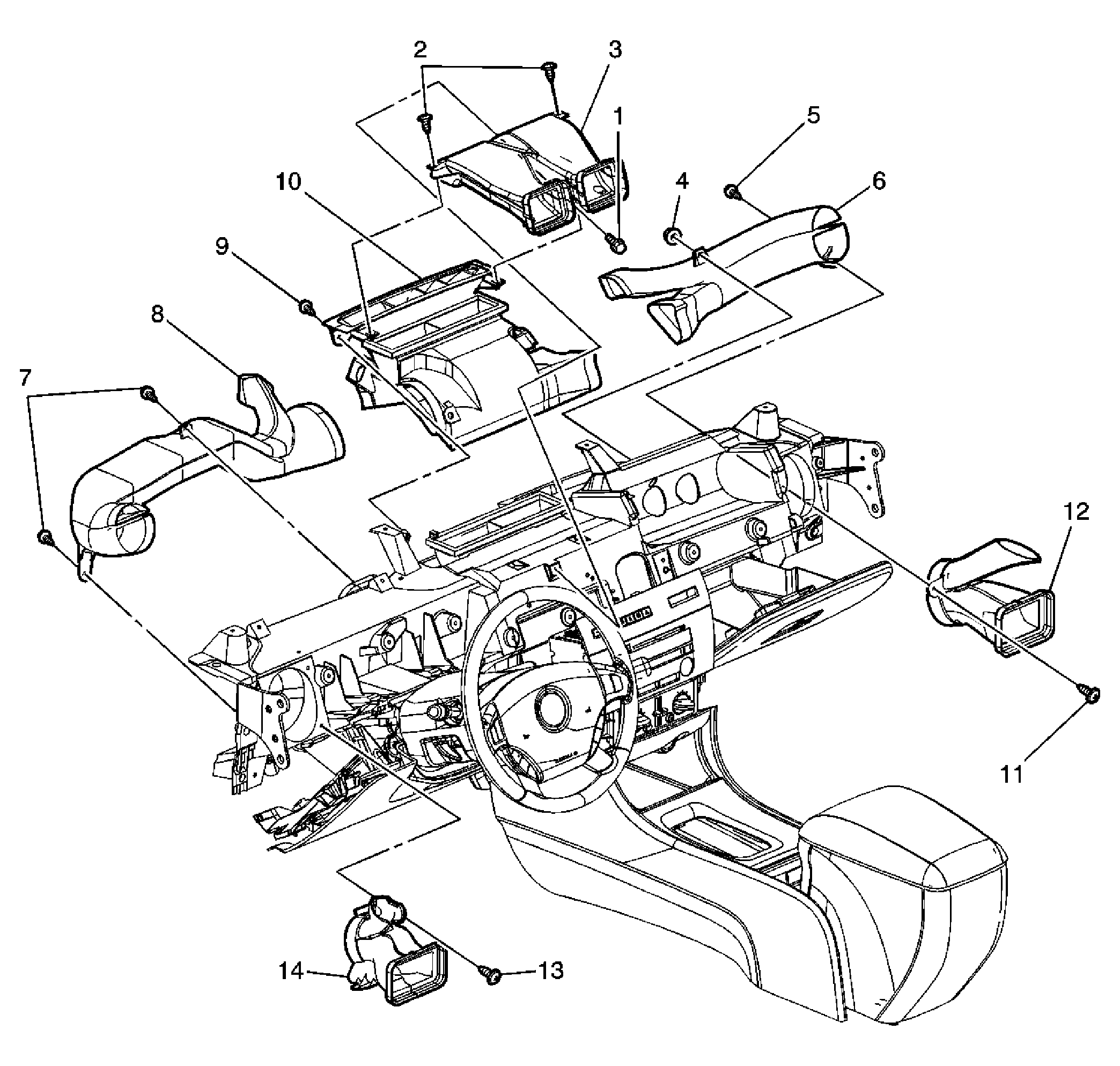

Fig 1: Identifying Air Distributor Duct Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the instrument panel carrier. Refer to Instrument Panel Carrier Replacement . Remove the temperature sensor upper right. Refer to Air Temperature Sensor Replacement - Upper Right Side . Remove the temperature sensor upper left. Refer to Air Temperature Sensor Replacement - Upper Left Side .
1	Bolt, Duct Assembly - Air Distribution Tighten: 8 N.m (71 lb in)
2	Screw, Duct Assembly - Air Distribution Tighten: 1.5 N.m (71 lb in)
3	Duct Assembly - Air Distribution
4	Nut Speed, Distributor Assembly Air Right Hand Tighten: 1.5 N.m (71 lb in)
5	Screw, Distributor Assembly Air Right Hand Tighten: 8 N.m (71 lb in)
6	Distributor Assembly Air Right Hand
7	Screw, Distributor Assembly Air Left Hand Tighten: 8 N.m (71 lb in)
8	Distributor Assembly Air Left Hand
9	Screw, Distributor Assembly Air Tighten: 8 N.m (71 lb in)
10	Distributor Assembly Air
11	Screw, Duct Assembly Air Distributor Duct Right Hand Tighten: 8 N.m (71 lb in)
12	Duct Assembly Air Distributor Duct Right Hand
13	Screw, Duct Assembly Air Distributor Duct Left Hand Tighten: 8 N.m (71 lb in)
14	Duct Assembly Air Distributor Duct Left Hand
