Instrument Panel Carrier Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

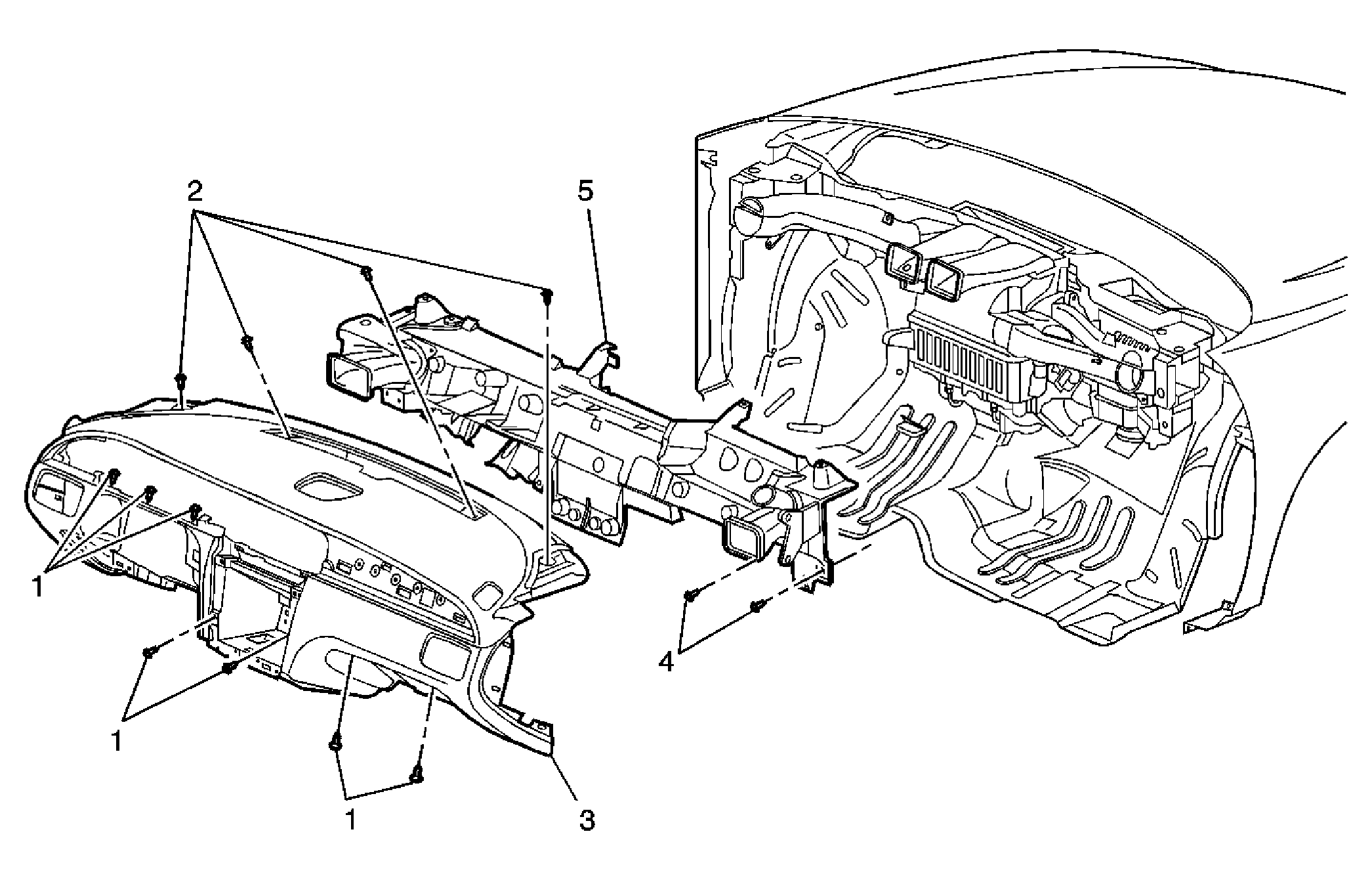

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
. |
|
| 1 | Bolt, Instrument Panel Trim Pad Assembly (Qty: 7) Tighten: 10 N.m (89 lb in) |
| 2 | Bolt, Instrument Panel Trim Pad Assembly (Qty: 4) Tighten: 10 N.m (89 lb in) |
| 3 | Pad Assembly, Instrument Panel Trim Refer to Instrument Panel Trim Pad Replacement . |
| 4 | Bolt, Instrument Panel Carrier (Qty: 8) Tighten: 25 N.m (18 lb ft) |
| 5 | Carrier, Instrument Panel Tip: Disconnect all necessary connectors and note the routing of wires for installation. |
