Air Conditioning (A/C) Evaporator Case Assembly Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

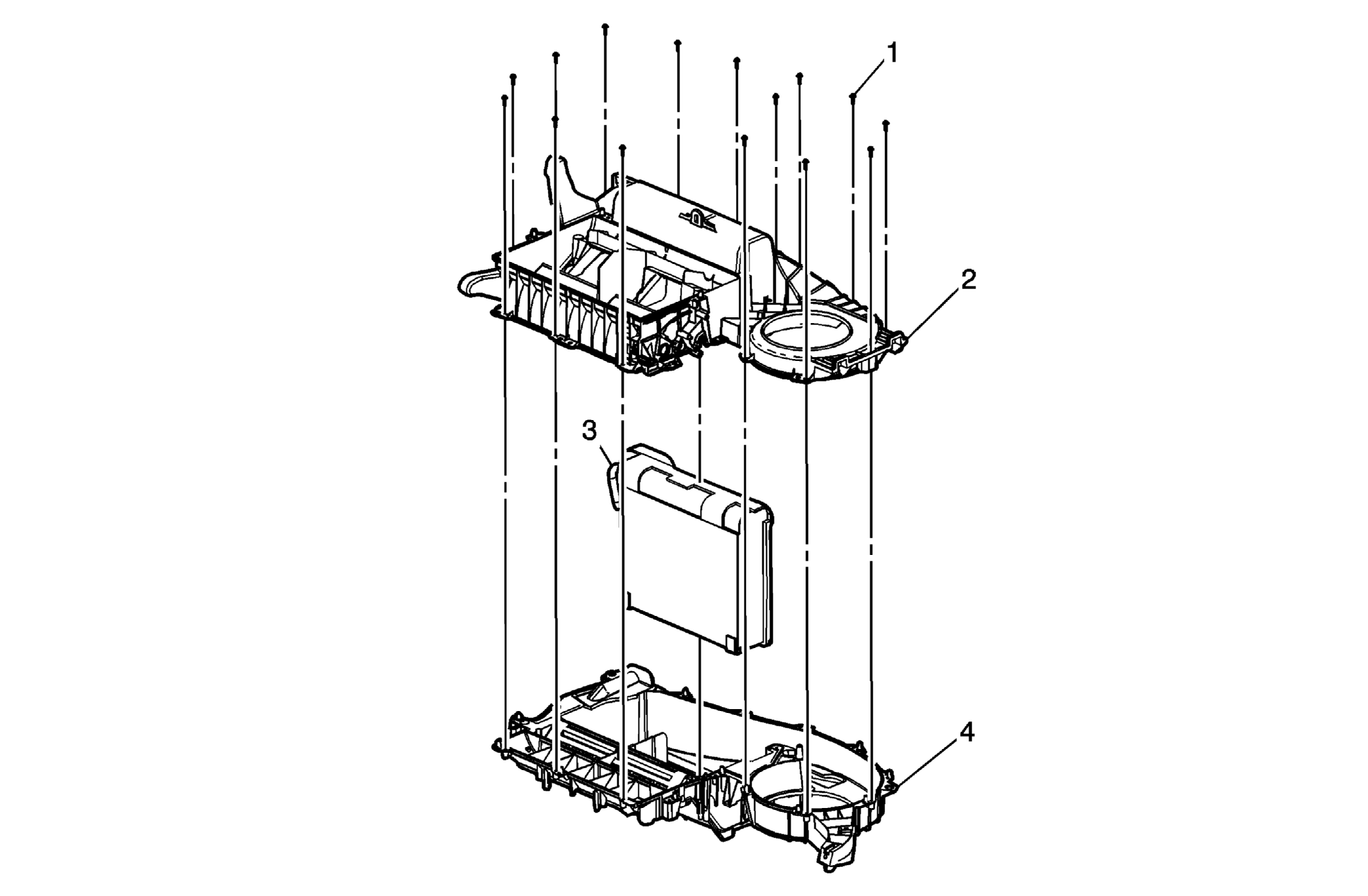

Fig 1: Replacing Air Conditioning (A/C) Evaporator Case Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the HVAC module. Refer to HVAC Module Assembly Replacement . Remove the mode valve assembly. Refer to Mode Valve Assembly Replacement . Remove the heater core. Refer to Heater Core Replacement .
1	Evaporator Case Assembly Screw (Qty: 17) Tip: Remove the heat stakes that secure the HVAC module assembly upper case to the HVAC module lower case using a small chisel. Tighten: 1.5 N.m (13 lb in)
2	Evaporator - Upper Case
3	Air Conditioning Evaporator
4	Evaporator - Lower Case
