Roof Side Rail Inflatable Restraint Module Replacement - Right Side

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

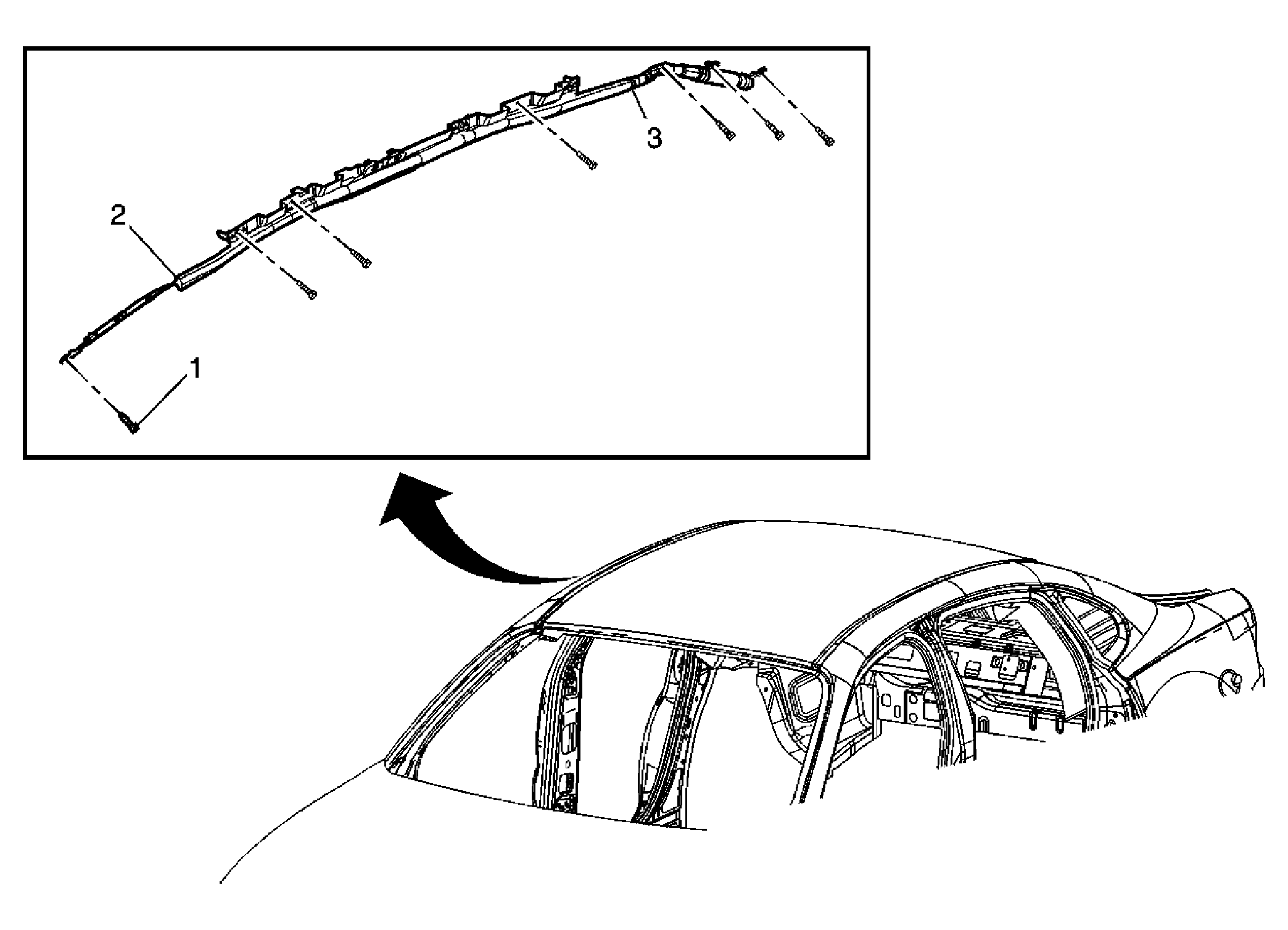

Fig 1: Identifying Right Inflatable Restraint Roof Rail Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disable the supplementary inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the garnish molding windshield. Refer to Windshield Pillar Garnish Molding Replacement . Remove the upper center pillar trim panel. Refer to Center Pillar Upper Trim Panel Replacement . Remove the upper rear quarter trim panel. Refer to Rear Quarter Lower Trim Panel Replacement . Remove the rear quarter window shelf. Refer to Rear Window Shelf Trim Panel Replacement . Remove the headliner assembly. Refer to Headlining Trim Panel Replacement .
1	Restraint Roof Rail Module Bolt (Qty: 7) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Restraint Roof Rail Module Connector
3	Inflatable Roof Rail Module Tip: If the air bag had a DTC, and must be returned for warranty, refer to Inflator Module Handling and Scrapping .
