Windshield Pillar Garnish Molding Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

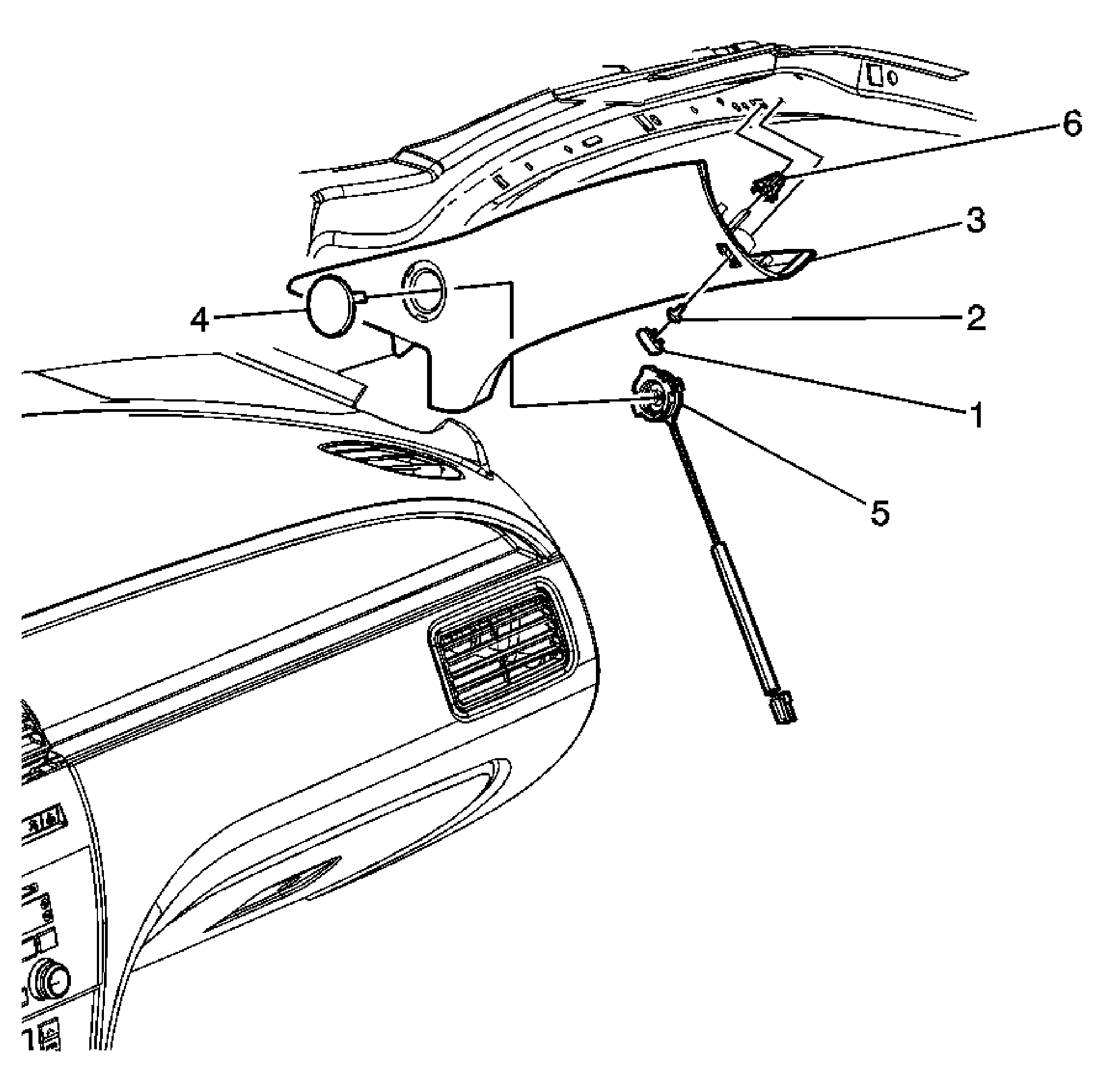

Fig 1: Identifying Windshield Pillar Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .
1	Windshield Side Upper Cap Tip: Use a small flat-bladed tool to release the cap from the molding.
2	Windshield Side Upper Garnish Molding Screw Tighten: 2 N.m (18 lb in)
3	Windshield Side Upper Garnish Molding Tip: Pull the molding away from the windshield pillar to disengage the clips. Disconnect the electrical connector from the speaker.
4	Radio Windshield Side Garnish Molding Grille
5	Radio Windshield Side Garnish Molding Speaker
6	Windshield Side Garnish Molding Clip (Qty: 2)
