Instrument Panel Trim Plate Bolt Cover Replacement - Left Side

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

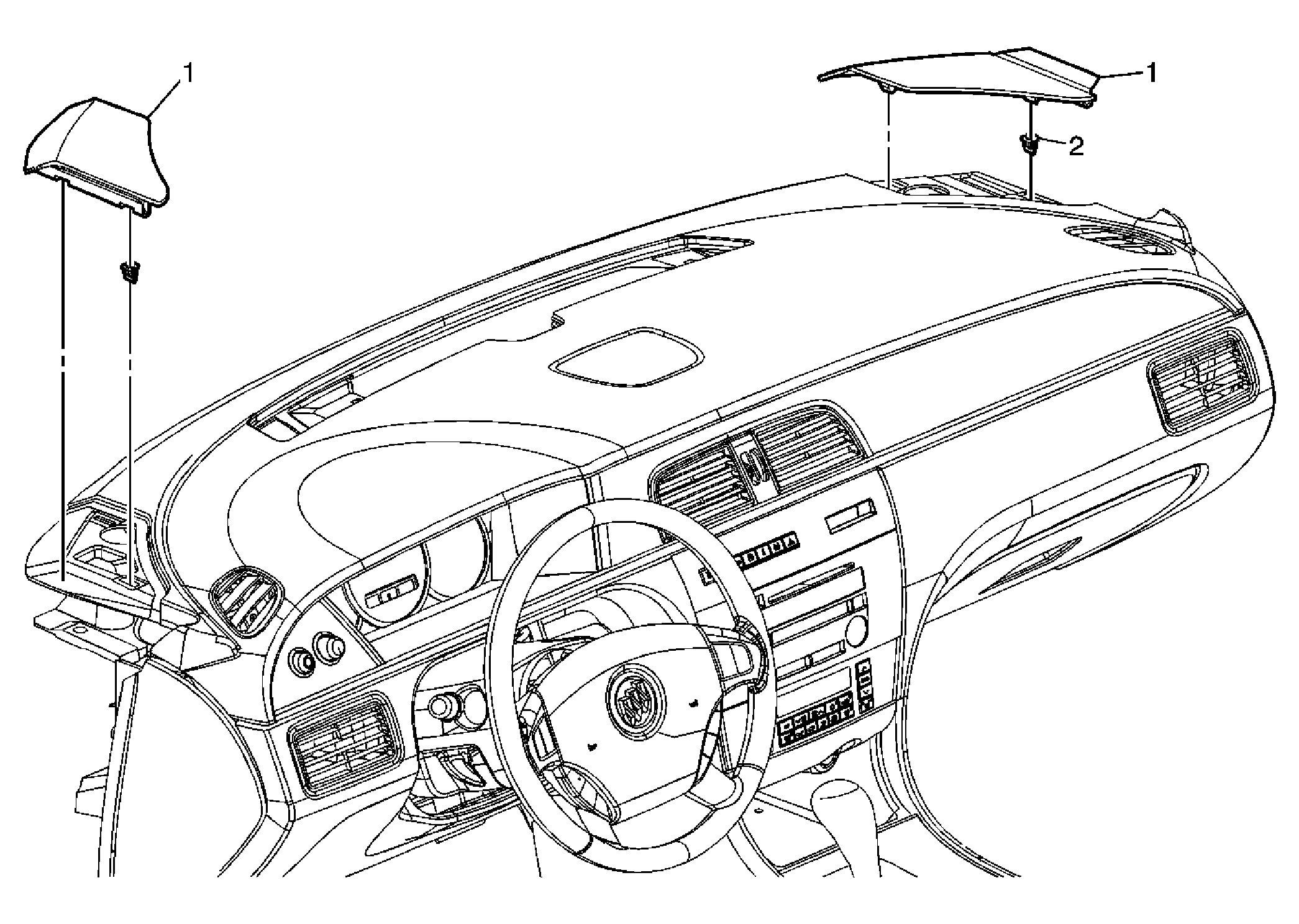

Fig 1: Identifying Cover - Instrument Panel (I/P) Trim Plate Bolts
GM1552267Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the windshield pillar garnish molding. Refer to Windshield Pillar Garnish Molding Replacement .
1 Instrument Panel Trim Plate Bolt Cover
2 Instrument Panel Trim Plate Bolt Cover Retaining Clips (Qty: 2)
