Installing the rear window wiring harness
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

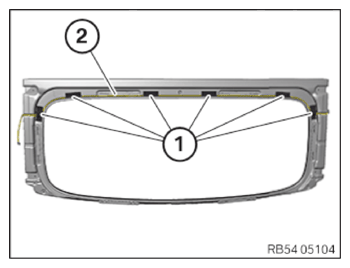

- Replace the retaining straps (1)
.
Parts: Retaining straps
- Position the wiring harness of the rear window (2) and fix it with the retaining straps (1) .
Follow-up work
- Refer to INSTALLING THE CONVERTIBLE ROOF BRACE FOR THE REAR WINDOW .
- Refer to INSTALLING THE SEAL FOR THE CONVERTIBLE TOP BRACE .
- Refer to INSTALLING THE SEAL FOR THE WINDSHIELD PANEL .
- Refer to ADJUSTING DOOR WINDOW GLASS .
- Refer to ADJUSTING THE REAR SIDE WINDOW .
