Installing the seal for the convertible top brace

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the left and right side.

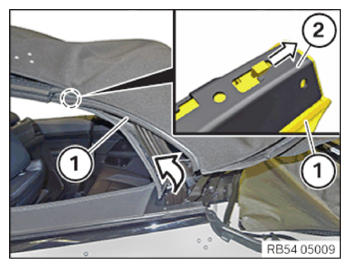

Insert the seal (1) for the convertible top brace at the seal carrier (2) in the arrow direction and position it.

Courtesy of BMW OF NORTH AMERICA, INC.

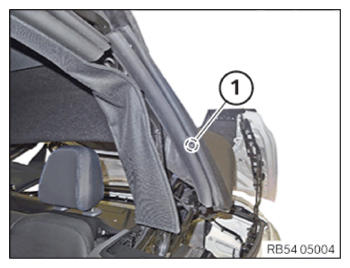

Fasten blind rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

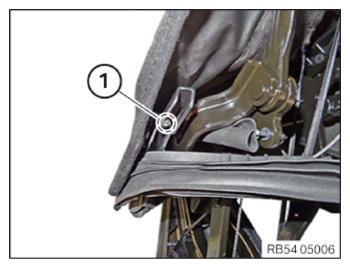

Fasten blind rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

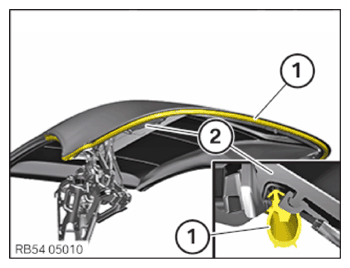

Insert the seal (1) for the convertible top brace at the convertible top frame (2).

Make sure that the seal is mounted without tension.

NOTE: To facilitate installation, coat the seal a little with water.

Courtesy of BMW OF NORTH AMERICA, INC.
