Install soft top cover

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Check the clamps (2) for damage and replace them if necessary.
Clamps (2) must not be damaged or missing.

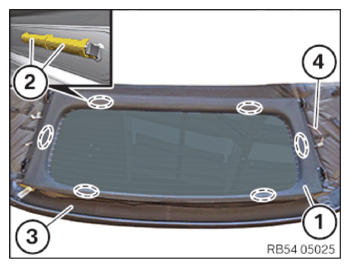

Position the convertible top bow (1) on the convertible top fabric (3) and fasten to the clamps (2).
Position the cable (4) and connect the connector.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the convertible top fabric (2) with the convertible top bow (3) on the previously set marks.

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Convertible roof brace to hood linkage
Oval-head screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Position the retaining straps (2) and fasten them with clips (1) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

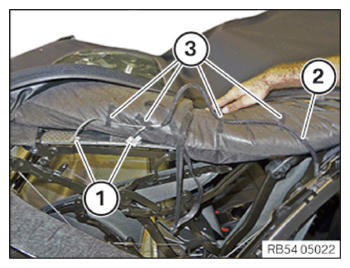

Feed in the wiring harness (2) on the retaining tabs (3).
Connect all connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

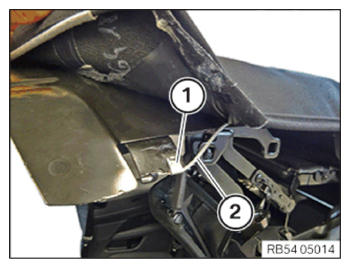

Feed in the luggage strap (1) on the convertible top fabric (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.

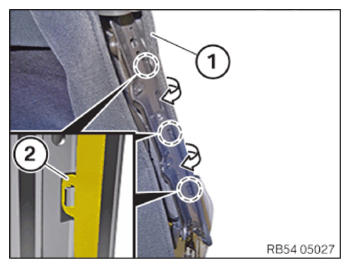

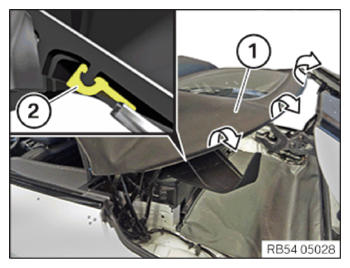

Hook the convertible top fabric (1) at the retaining tabs (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the convertible top fabric (1) on the convertible top bow and fold it downwards in arrow direction.

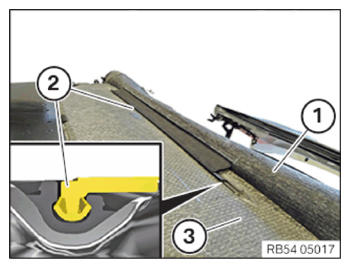

Fasten the convertible top fabric (1) with the edge stripping (2) to the convertible top bow.

Courtesy of BMW OF NORTH AMERICA, INC.

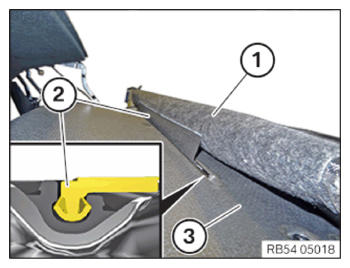

Fasten the convertible top fabric (1) with the edge stripping (2) to the convertible top bow (3).

Courtesy of BMW OF NORTH AMERICA, INC.

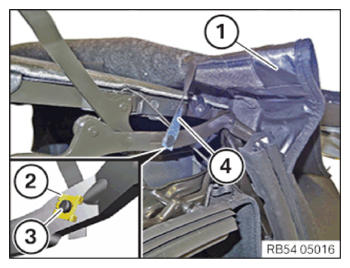

Fold the convertible top fabric (1) forwards.
Position the retaining strap (4).
Guide in the bolt (3).
Fasten the retaining clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Fold the convertible top fabric (1) further forward.
Fasten the edge stripping (2) to the convertible top bow (3).

Courtesy of BMW OF NORTH AMERICA, INC.

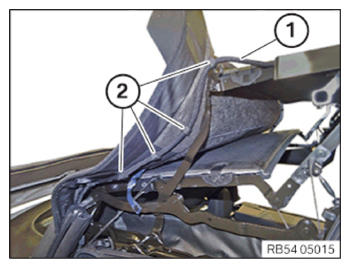

Fasten the wiring harness (1) at the hook and loop fasteners (2).

Courtesy of BMW OF NORTH AMERICA, INC.

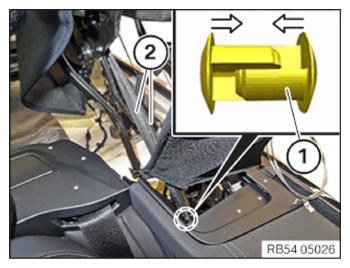

Hook in the tension cable (2).
Position the retaining clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.

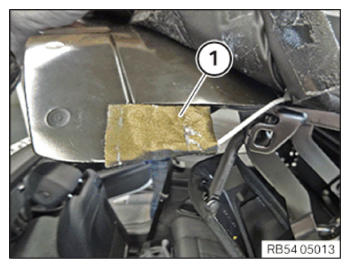

Fasten the adhesive tape (1).

Courtesy of BMW OF NORTH AMERICA, INC.

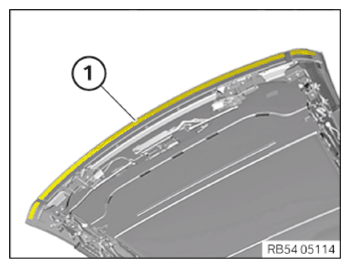

Replace the double-sided adhesive tape in the area (1).
Parts: Double-sided adhesive tape

Courtesy of BMW OF NORTH AMERICA, INC.

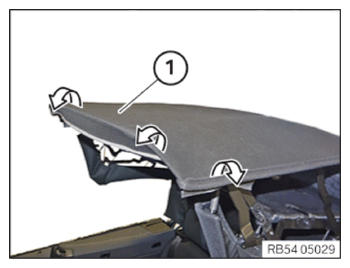

Position the convertible top fabric (1) in arrow direction on the convertible top bow.

Courtesy of BMW OF NORTH AMERICA, INC.

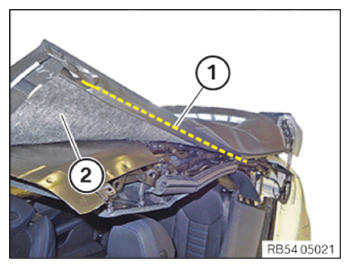

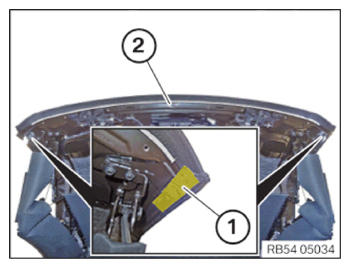

Fasten the adhesive tape (1) on the left and right of the convertible top bow (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE SEAL FOR THE CONVERTIBLE TOP BRACE .
Refer to INSTALLING THE SEAL FOR THE WINDSHIELD PANEL .
Refer to ADJUSTING DOOR WINDOW GLASS .
Refer to ADJUSTING THE REAR SIDE WINDOW .
