Install the control for the rear seat backrest

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

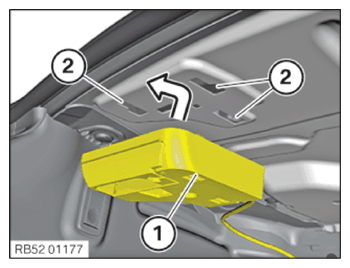

Insert the control (1) into the openings (2) and slide it back.

Courtesy of BMW OF NORTH AMERICA, INC.

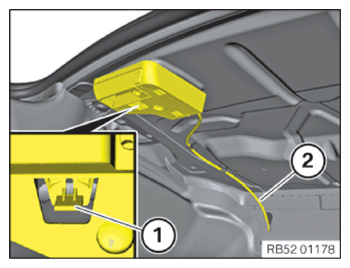

Make sure the detent (1) is correctly positioned.
Insert the Bowden cable (2) into the body.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE BACKREST LOCK .
