Install the backrest lock

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

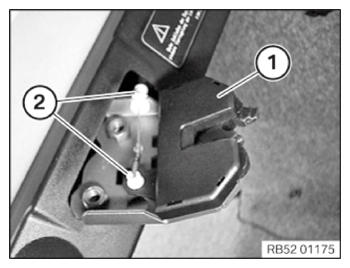

Clip in the Bowden cable (2) in the backrest lock (1).
Check for correct fit of the Bowden cable (2) on the backrest lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.

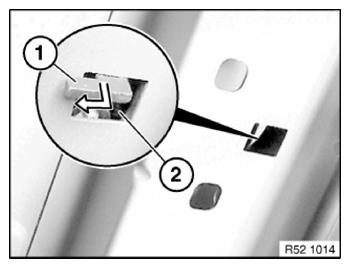

Insert the backrest lock into the body and feed in the guide (1) into the recess (2).

Courtesy of BMW OF NORTH AMERICA, INC.

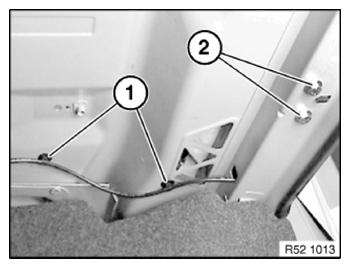

Screw in the screws (2) several rotations.
Clip in the Bowden cable into the holder (1).
Lock the rear seat backrest and press back hard.

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Backrest lock to body
M8	Tightening Torque	19 Nm
M8	Tightening Torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
