When replacing the backrest frame center section: Remount components

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING REAR SEAT BENCH .
Refer to REMOVING RIGHT BACKREST SIDE SECTION .
Refer to REMOVING THE RIGHT REAR SEAT BACKREST .
Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
Refer to REMOVING THE CENTER REAR SEAT BACKREST .
Refer to REMOVING THE TRIM FOR THE CENTER REAR SEAT BACKREST ACTUATION .
Refer to REMOVING REAR CENTER ARMREST .
Refer to REMOVING THE TRIM FOR THE CENTER ARMREST .
Refer to REMOVING THE BACKREST COVERING FOR THE CENTER REAR SEAT .

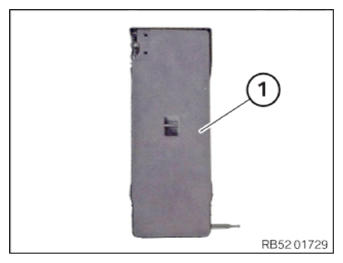

Partially removing the rear panel for the center rear seat backrest

Guide out rear panel (1) for the center rear seat backrest.

Courtesy of BMW OF NORTH AMERICA, INC.

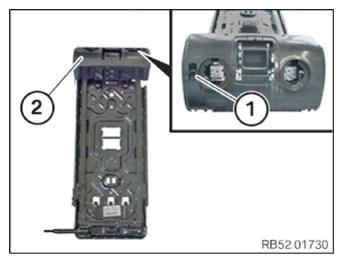

Removing the insert for the center rear seat backrest
Loosen screw (1).
Guide out insert (2) for the center rear seat backrest.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the insert for center rear seat backrest
Feed in the insert (2) for the center rear seat backrest and position it correctly.
Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the rear panel for center rear seat backrest (partially removed)
Feed in the rear panel (1) for the center rear seat backrest.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE BACKREST COVERING FOR THE CENTER REAR SEAT .
Refer to INSTALLING THE TRIM FOR THE CENTER ARMREST .
Refer to INSTALLING THE REAR CENTER ARMREST .
Refer to INSTALLING THE TRIM FOR THE CENTER REAR SEAT BACKREST ACTUATION .
Refer to INSTALLING THE CENTER REAR SEAT BACKREST .
Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
Refer to INSTALLING THE REAR SEAT BACKREST .
Refer to INSTALLING RIGHT BACKREST SIDE SECTION .
Refer to INSTALLING THE REAR SEAT .
