Installing the backrest covering (M CFRP bucket seat)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
- Position the backrest covering (1) correctly.

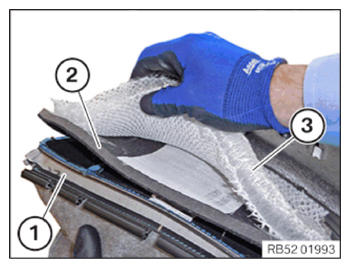

- Assemble the backrest covering (1)
with the heating element (2)
and the foam rubber padding (3)
correctly.

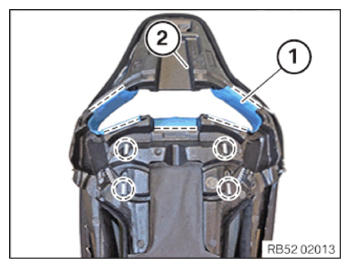

- Clip the backrest covering (1)
in the marked areas into the foam cushion (2)
.
Follow-up work
- Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE REAR APERTURE TRIM (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE FRONT APERTURE TRIM (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE EMBLEM IN THE BACKREST OF THE FRONT SEAT (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE INSERT FOR THE HEAD RESTRAINT (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE INNER COVER ON THE FRONT SEAT .
- Refer to INSTALLING OUTER COVER ON FRONT SEAT .
- Refer to INSTALLING DRIVER'S SEAT .
