Installing the seat cover (M CFRP bucket seat)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

Position the seat cover (1) correctly.

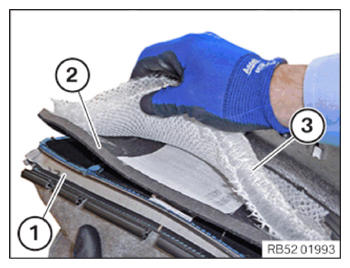

Assemble the seat cover (1) with the heating element (2) and the foam rubber padding (3) correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

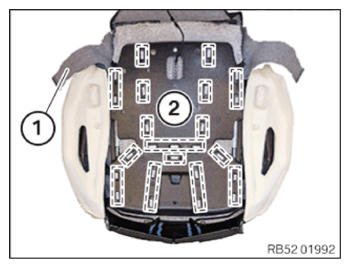

Clip all clips in the marked areas of the seat cover (1) into the foam cushion (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE SEAT COVER WITH CUSHION (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE FRONT SEAT TRIM (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE INNER SEAT TRIM (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE OUTER SEAT TRIM (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE INNER COVER ON THE FRONT SEAT .
Refer to INSTALLING OUTER COVER ON FRONT SEAT .
Refer to INSTALLING DRIVER'S SEAT .
