Installing the inner seat trim (M CFRP bucket seat)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .
- Protect surfaces from damage.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
Check

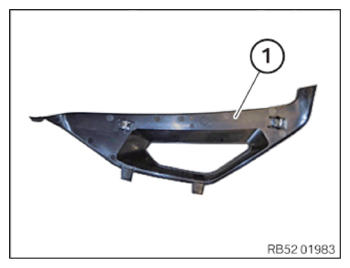

- Check all detents at the outer seat trim (1) for damage.
Result
» Detent is damaged.
Measure
- Replace the outer seat trim.

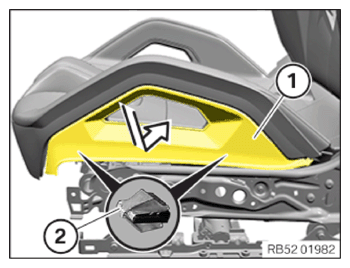

- Correctly position the outer seat trim (1) in the arrow direction.
- Carefully clip the outer seat trim (1) into the clips (2).
Follow-up work
- Refer to INSTALLING DRIVER'S SEAT .
