Removing the seat frame
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to CHECKING THE FRONT SEAT FOR DAMAGE .
- Refer to REMOVING DRIVER'S SEAT .
- Refer to FOR CONTINUING WORK ON THE FRONT SEAT: MOUNT THE FRONT SEAT ON THE UNIVERSAL SEAT MOUNT AND CONNECT WITH THE WIRING HARNESS IF NECESSARY .
- Refer to REMOVING THE REAR PANEL ON THE FRONT SEAT BACKREST .
- Refer to REMOVING THE HEAD RESTRAINT .
- Refer to REMOVING OUTER COVER ON FRONT SEAT .
- Refer to REMOVING INNER COVER FROM THE FRONT SEAT .
- Refer to REMOVING THE BACKREST COVER WITH THE CUSHION .
- Refer to REMOVING THIGH SUPPORT .
- Refer to REMOVING SEAT COVER WITH CUSHION FOR DRIVER'S SEAT .
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
NOTE:
The operations shown only for one side must be carried out on both sides.

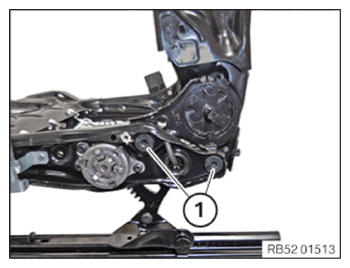

- Loosen screws (1).

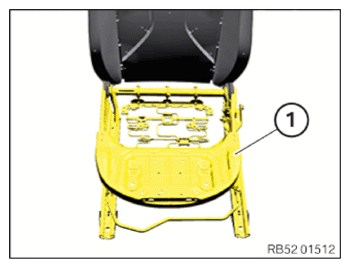

- Remove the seat frame (1).
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
- Release all attached parts from the seat frame (1).
