Removing the head restraint
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

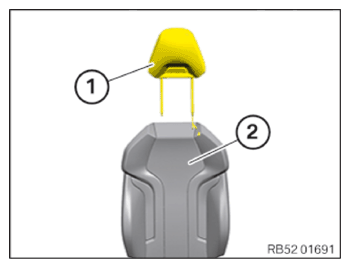

For a better overview the removed condition is shown here.
Preliminary work
- Refer to REMOVING THE REAR PANEL ON THE FRONT SEAT BACKREST .
- Refer to PARTIALLY RELEASING THE BACKREST COVERING WITH CUSHION .
- Unlock plug connection (1) and disconnect.
NOTE:
TECHNICAL INFORMATION
The drivetrain for the headrest height adjustment must be replaced as soon as the head restraint is removed.
The drivetrain for the headrest height adjustment must be replaced as soon as the head restraint is removed.

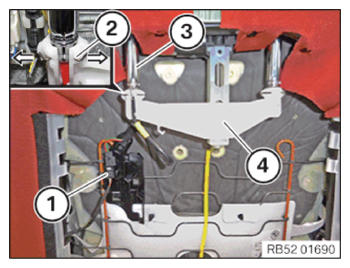

- Spread apart clamps (2) slightly in the arrow direction. Detach head restraint (3) from drivetrain (4).
- Guide out the head restraint carefully with cable (1) from front seat (2).
