Installing the seat frame
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
NOTE:
TECHNICAL INFORMATION
Different variants maybe installed depending on the vehicle equipment.
Different variants maybe installed depending on the vehicle equipment.

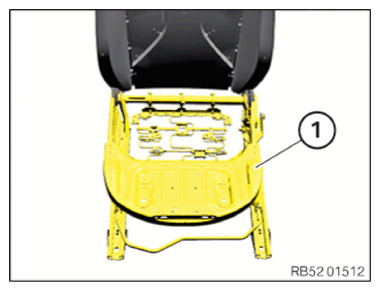

- Position and fasten all mounted parts on the seat frame (1) .
- Correctly position the seat frame (1)
.NOTE: The operations shown only for one side must be carried out on both sides.

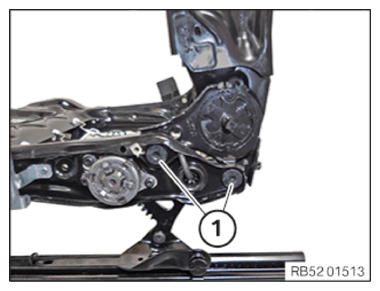

- Replace screws (1)
.
Parts: Screws
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Seat frame to backrest frame | ||
|---|---|---|
| Screw Replace screw. | tightening torque | 44 Nm |
Follow-up work
- Refer to INSTALLING THE SEAT COVER WITH CUSHION FOR THE DRIVER'S SEAT .
- Refer to INSTALLING THIGH SUPPORT .
- Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION .
- Refer to INSTALLING THE INNER COVER ON THE FRONT SEAT .
- Refer to INSTALLING OUTER COVER ON FRONT SEAT .
- Refer to INSTALLING THE HEAD RESTRAINT .
- Refer to INSTALLING THE REAR PANEL ON THE FRONT SEAT BACKREST .
- Refer to AFTER CONTINUING WORK ON THE FRONT SEAT: DISCONNECTING THE FRONT SEAT FROM THE WIRING HARNESS OF THE VEHICLE AND REMOVING IT FROM THE UNIVERSAL SEAT MOUNT .
- Refer to INSTALLING DRIVER'S SEAT .
