Install thigh support
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

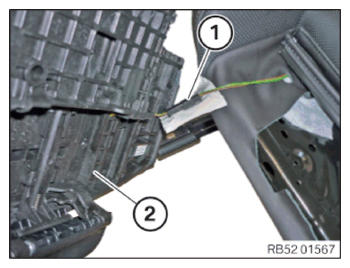

- Position the thigh support (2).
- Connect connectors (1) and lock.

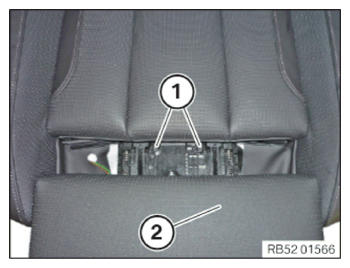

- Guide the thigh support (2) in and position correctly.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Thigh support on the front seat | ||
|---|---|---|
| Screw | Tightening torque | 2 Nm |

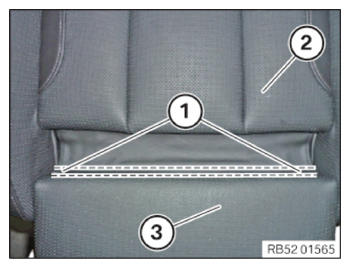

- Mount the edge stripping (1) of the seat cover (2) on the thigh support (3).
