Installing the drivetrain for the outer backrest width adjustment
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

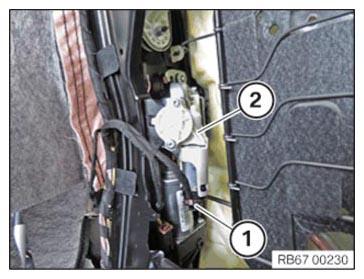

- Feed in and correctly position the drivetrain (2).
- Connect connectors (1) and lock.

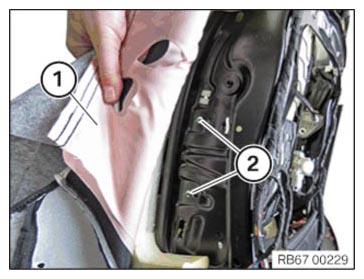

- Slightly fold backrest cover (1) to one side.
- Replace the blind rivets (2).
Parts: Blind rivet
- Attach the drivetrain with the blind rivets (2).
Follow-up work
- Refer to INSTALLING SIDE AIRBAG ON FRONT SEAT .
- Refer to INSTALLING OUTER COVER ON FRONT SEAT .
- Refer to INSTALLING THE BOTTOM REAR PANEL ON THE FRONT SEAT REAR PANEL .
- Refer to INSTALLING THE TOP REAR PANEL ON THE FRONT SEAT REAR PANEL .
- Refer to CONNECTING BATTERY GROUND LEAD .
