Installing the front passenger airbag
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Ensure that the plug connection is (1) not unlocked and disconnected,
- Check the locking tab (3)
and the holders on the front passenger airbag (4)
for damage.
The locking tab (3) and the holders must not be damaged or missing.
- Slide the front passenger airbag (4) to the right into the holders until the locking tab (3) engages,
- Tighten down screw (2)
,TIGHTENING TORQUE SPECIFICATIONS
Front passenger airbag Oval-head screw Tightening torque 2.0 - Connect and lock the connector (1)
at the front passenger airbag (2)
,

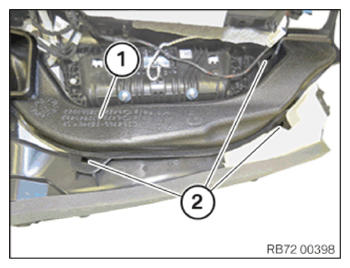

- Fold the air duct (1)
down and engage it in the detents (2)
.
