Installing the backrest frame (M CFRP bucket seat)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components
Scratches, surface damage

Protect working area.
Handle tools and components carefully.

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

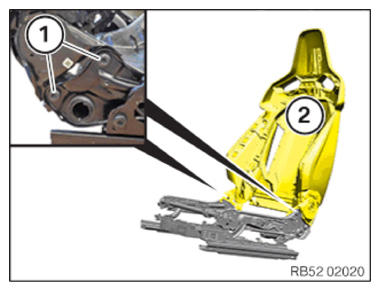

Position and attach all the installed parts on the backrest frame (2) .
Position the backrest frame (2) correctly.
NOTE: The operations shown only for one side must be carried out on both sides.
Replace screws (1) .
Parts: Screws
Tighten down screws (1) .

TIGHTENING TORQUES SPECIFICATION

Seat frame to backrest frame (M CFRP bucket seat)
Screw Replace screw.	Tightening torque	38 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE REAR APERTURE TRIM (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE FRONT APERTURE TRIM (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE EMBLEM IN THE BACKREST OF THE FRONT SEAT (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE INSERTING FOR THE HEAD RESTRAINT (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE INNER COVER ON THE FRONT SEAT .
Refer to INSTALLING OUTER COVER ON FRONT SEAT .
Refer to INSTALLING DRIVER'S SEAT .
