Installing the grooved ball bearing in the propeller shaft center bearing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Lubricate the rubber-coated bearing carrier of the propeller shaft center bearing (1) with lubricant.
CONSUMABLE DESCRIPTION
| Installation aid | 250 ml, | 83192405829 |
| (Circo Light; lubricant) | Bottle |

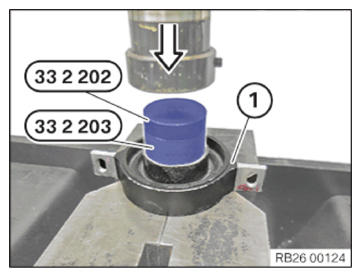

- Press in the grooved ball bearing using special tools 0 492 262 (33 3 202) and 0 492 263 (33 3 203) into the propeller shaft center bearing (1) .
Follow-up work
- Refer to INSTALLING THE CENTRAL MOUNTING OF THE PROP SHAFT .
- Refer to INSTALLING THE COMPLETE PROP SHAFT .
- Refer to INSTALLING THE HEAT SHIELDS .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE REAR TUNNEL CONNECTING SUPPORT .
- Refer to INSTALLING THE REINFORCEMENT STRUT .
- Refer to INSTALLING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to INSTALLING THE UNDERSHIELD ON THE LEFT FUEL TANK .
- Refer to INSTALLING THE REAR DIFFUSER .
