Install the central mount of the prop shaft
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Slide the central mount (1)
onto the prop shaft.
The collar (2) must point in the driving direction toward the front prop shaft.
- Central mount diameter 30 mm (black sealing ring):
Slide on the central mount (1) all the way to the stop using special tool 0 491 491 (23 1 160) .
- Central mount diameter 35 mm (blue sealing ring):

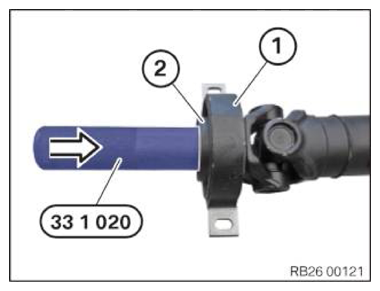

Slide on the central mount (1) all the way to the stop using special tool 0 492 074 (33 1 020) .
Installing the boot of the center bearing
- Apply an even coating of grease to longitudinal splines on propeller shaft.
- Slide the bellows (1) onto the groove (2) and make sure the fit is secure.
CONSUMABLE DESCRIPTION
| Lubricating grease | 100 g, | 83 19 0 447 |
| Olistamoly 2 LN 584 LO | Tube | 919 |
- If necessary, replace the clamping ring (1) and insert it into the front prop shaft (2) .
Parts: Clamping ring
- Slide the front prop shaft (3)
onto the longitudinal splines of the rear prop shaft (4)
in accordance with the mark you made.
The marks (arrows) must be flush.

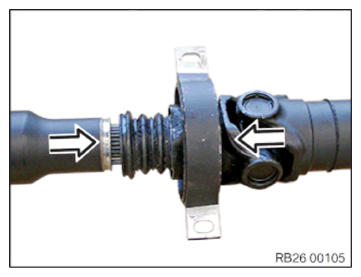

- Slide the bellows (1) onto the groove (2) and make sure the fit is secure.
- Slide the prop shaft together with them in the arrow direction.
Follow-up work
- Refer to INSTALLING THE COMPLETE PROP SHAFT .
- Refer to INSTALLING THE HEAT SHIELDS .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE REAR TUNNEL CONNECTING SUPPORT .
- Refer to INSTALLING THE REINFORCEMENT STRUT .
- Refer to INSTALLING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to INSTALLING THE UNDERSHIELD ON THE LEFT FUEL TANK .
- Refer to INSTALLING THE REAR DIFFUSER .
